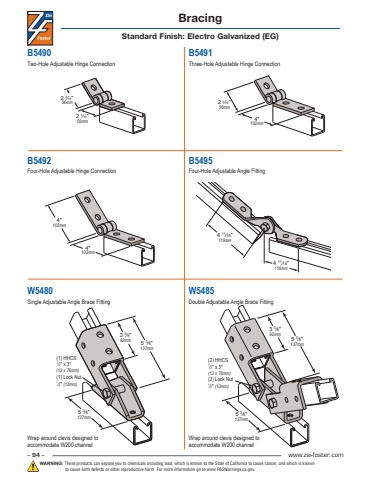

– 94 – www.zsi-foster.comWARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.BracingStandard Finish: Electro Galvanized (EG)Wrap around clevis designed toaccommodate W200 channelWrap around clevis designed to accommodate W200 channel(1) HHCS 1⁄2\(13 x 76mm)(1) Lock Nut1⁄2\5 3⁄8\137mm3 5⁄8\92mm5 3⁄8\137mm5 3⁄8\137mm3 5⁄8\92mm5 3⁄8\137mm(2) HHCS 1⁄2\(13 x 76mm)(2) Lock Nut1⁄2\W5480Single Adjustable Angle Brace FittingW5485Double Adjustable Angle Brace Fitting4\102mm4\102mmB5492Four-Hole Adjustable Hinge Connection2 3⁄16\56mm2 3⁄16\56mmB5490Two-Hole Adjustable Hinge Connection2 3⁄16\56mm4\102mmB5491Three-Hole Adjustable Hinge ConnectionB5495Four-Hole Adjustable Angle Fitting4 11⁄16\119mm4 11⁄16\119mm
