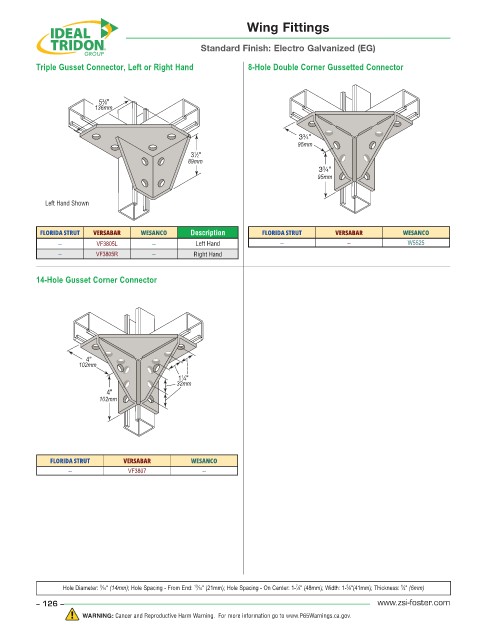

Wing Fittings

Standard Finish: Electro Galvanized (EG)

Triple Gusset Connector, Left or Right Hand 8-Hole Double Corner Gussetted Connector

5 ⁄8"
3
136mm

3 ⁄4"
3
95mm
3 ⁄2"
1
89mm
3 ⁄4"
3
95mm

Left Hand Shown

FLORIDA STRUT VERSABAR WESANCO Description FLORIDA STRUT VERSABAR WESANCO
-- VF3805L -- Left Hand -- -- W5525
-- VF3805R -- Right Hand

14-Hole Gusset Corner Connector

4"
102mm
1 ⁄4"
1
32mm
4"
102mm

FLORIDA STRUT VERSABAR WESANCO
-- VF3807 --

5
Hole Diameter: ⁄16" (14mm); Hole Spacing - From End: ⁄16" (21mm); Hole Spacing - On Center: 1- ⁄8" (48mm); Width: 1- ⁄8"(41mm); Thickness: ⁄4" (6mm)
9
13
1
7
