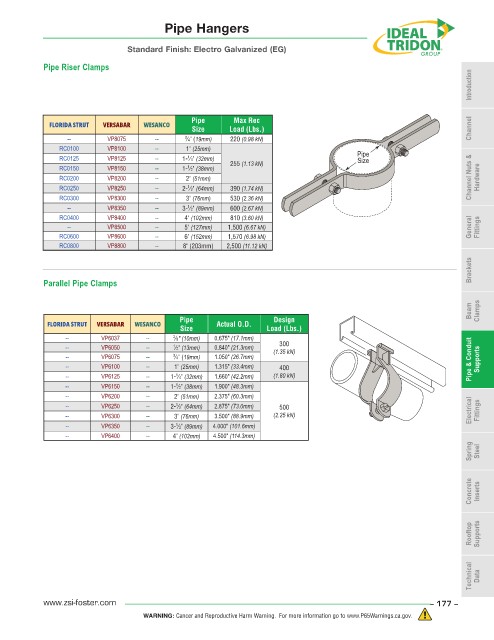

Page 177 - ZSi-Foster Product Catalog

Pipe Hangers

Standard Finish: Electro Galvanized (EG)

Pipe Riser Clamps
Introduction

Pipe Max Rec
FLORIDA STRUT VERSABAR WESANCO
Size Load (Lbs.) Channel
-- VP8075 -- 3 ⁄4" (19mm) 220 (0.98 kN)
RC0100 VP8100 -- 1" (25mm) Pipe
RC0125 VP8125 -- 1- ⁄4" (32mm) Size
1
1
RC0150 VP8150 -- 1- ⁄2" (38mm) 255 (1.13 kN)
RC0200 VP8200 -- 2" (51mm) Channel Nuts & Hardware
1
RC0250 VP8250 -- 2- ⁄2" (64mm) 390 (1.74 kN)
RC0300 VP8300 -- 3" (76mm) 530 (2.36 kN)
1
-- VP8350 -- 3- ⁄2" (89mm) 600 (2.67 kN)
RC0400 VP8400 -- 4" (102mm) 810 (3.60 kN)
-- VP8500 -- 5" (127mm) 1,500 (6.67 kN) General Fittings
RC0600 VP8600 -- 6" (152mm) 1,570 (6.98 kN)
RC0800 VP8800 -- 8" (203mm) 2,500 (11.12 kN)

Brackets

Parallel Pipe Clamps

Beam Clamps

Pipe Design
FLORIDA STRUT VERSABAR WESANCO Actual O.D.
Size Load (Lbs.)
-- VP6037 -- 3 ⁄8" (10mm) 0.675" (17.1mm)
300
-- VP6050 -- 1 ⁄2" (13mm) 0.840" (21.3mm) (1.35 kN)
-- VP6075 -- 3 ⁄4" (19mm) 1.050" (26.7mm) Pipe & Conduit Supports
-- VP6100 -- 1" (25mm) 1.315" (33.4mm) 400
1
-- VP6125 -- 1- ⁄4" (32mm) 1.660" (42.2mm) (1.80 kN)
1
-- VP6150 -- 1- ⁄2" (38mm) 1.900" (48.3mm)
-- VP6200 -- 2" (51mm) 2.375" (60.3mm)
-- VP6250 -- 2- ⁄2" (64mm) 2.875" (73.0mm) 500 Electrical Fittings
1
-- VP6300 -- 3" (76mm) 3.500" (88.9mm) (2.25 kN)
1
-- VP6350 -- 3- ⁄2" (89mm) 4.000" (101.6mm)
-- VP6400 -- 4" (102mm) 4.500" (114.3mm)
Spring Steel

Concrete Inserts

Rooftop Supports

Technical Data
