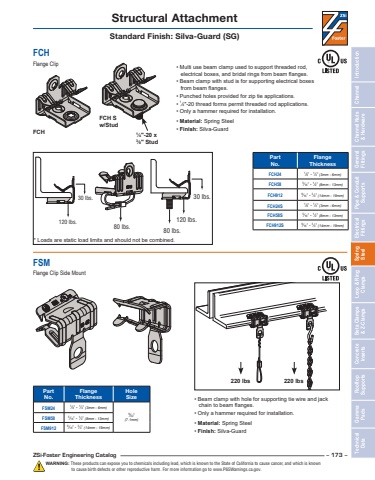

Technical Data Gamma Pads Rooftop Supports Concrete Inserts Beta Clamps & Z-Clamps Loop & Ring Clamps Spring Steel Electrical Fittings Pipe & Conduit Supports General Fittings Channel Nuts & Hardware Channel IntroductionZSi-Foster Engineering Catalog – 173 –WARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.Structural AttachmentStandard Finish: Silva-Guard (SG)30 lbs.120 lbs.FCHFlange ClipFCHFCH S w/StudPart No.Flange ThicknessFCH24 1⁄8\⁄4\FCH58 5⁄16\⁄2\FCH912 9⁄16\⁄4\FCH24S 1⁄8\⁄4\FCH58S 5⁄16\⁄2\FCH912S 9⁄16\⁄4\80 lbs.30 lbs.120 lbs.80 lbs.* Loads are static load limits and should not be combined.• Multi use beam clamp used to support threaded rod, electrical boxes, and bridal rings from beam flanges.• Beam clamp with stud is for supporting electrical boxes from beam flanges. • Punched holes provided for zip tie applications. • 1⁄4\• Only a hammer required for installation.• Material: Spring Steel• Finish: Silva-Guard 1⁄4\3⁄8\FSMFlange Clip Side MountPart No.Flange ThicknessHole SizeFSM24 1⁄8\⁄4\9⁄32\(7.1mm) FSM58 5⁄16\⁄2\FSM912 9⁄16\⁄4\• Beam clamp with hole for supporting tie wire and jack chain to beam flanges. • Only a hammer required for installation.• Material: Spring Steel• Finish: Silva-Guard220 lbs 220 lbs
