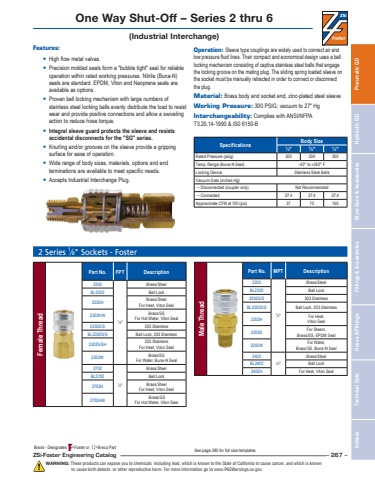

Brand - Designates =Foster or =Breco Part Indexes Technical Data Hoses & Fittings Fittings & Accessories Blow Guns & Accessories Hydraulic QD Pneumatic QDZSi-Foster Engineering Catalog – 267 –WARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.Features:• High flow metal valves.• Precision molded seals form a \operation within rated working pressures. Nitrile (Buna-N) seals are standard. EPDM, Viton and Neoprene seals are available as options.• Proven ball locking mechanism with large numbers of stainless steel locking balls evenly distribute the load to resist wear and provide positive connections and allow a swiveling action to reduce hose torque. • Integral sleeve guard protects the sleeve and resists accidental disconnects for the \• Knurling and/or grooves on the sleeve provide a gripping surface for ease of operation. • Wide range of body sizes, materials, options and end terminations are available to meet specific needs. • Accepts Industrial Interchange Plug.Operation: Sleeve type couplings are widely used to connect air and low pressure fluid lines. Their compact and economical design uses a ball locking mechanism consisting of captive stainless steel balls that engage the locking groove on the mating plug. The sliding spring loaded sleeve on the socket must be manually retracted in order to connect or disconnect the plug. Material: Brass body and socket end, zinc-plated steel sleeveWorking Pressure: 300 PSIG; vacuum to 27\Interchangeability: Complies with ANSI/NFPA T3.20.14-1990 & IS0 6150-BSpecifications Body Size1⁄4\3⁄8\1⁄2\Rated Pressure (psig) 300 300 300Temp. Range (Buna-N Seal) -40° to +250° FLocking Device Stainless Steel BallsVacuum Data (inches Hg) -- Disconnected (coupler only) Not Recommended -- Connected 27.4 27.4 27.4Approximate CFM at 100 (psi) 37 70 150One Way Shut-Off – Series 2 thru 6(Industrial Interchange)2 Series 1⁄8\Female ThreadPart No. FPT Description23021⁄ 8\Brass/SteelBL2302 Ball Lock2302H Brass/Steel For Heat, Viton Seal2302HW Brass/SSFor Hot Water, Viton Seal2302S/S 303 StainlessBL2302S/S Ball Lock, 303 Stainless2302S/SH 303 Stainless For Heat, Viton Seal2302W Brass/SSFor Water, Buna-N Seal27021⁄4\Brass/SteelBL2702 Ball Lock2702H Brass/Steel For Heat, Viton Seal2702HW Brass/SSFor Hot Water, Viton SealMale ThreadPart No. MPT Description22021⁄ 8\Brass/SteelBL2202 Ball Lock2202S/S 303 StainlessBL2202S/S Ball Lock, 303 Stainless2202H For Heat,Viton Seal2202S For Steam,Brass/SS, EPDM Seal2202W For Water,Brass/SS, Buna-N Seal24021⁄4\Brass/SteelBL2402 Ball Lock2402H For Heat, Viton SealSee page 380 for full size templates
