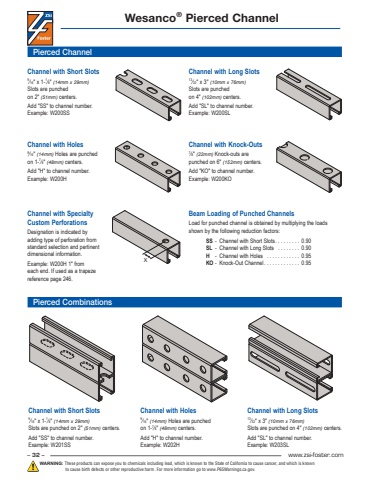

– 32 – www.zsi-foster.comWARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.Wesanco® Pierced ChannelPierced CombinationsPierced ChannelChannel with Short Slots9⁄16\⁄8\Slots are punched on 2\Add \Example: W200SSChannel with Long Slots13⁄32\ x 3\Slots are punched on 4\Add \Example: W200SLChannel with Holes9⁄16\on 1-7⁄8\Add \Example: W200HChannel with Knock-Outs7⁄8\punched on 6\Add \Example: W200KOChannel with Specialty Custom PerforationsDesignation is indicated by adding type of perforation from standard selection and pertinent dimensional information. Example: W200H 1\each end. If used as a trapeze reference page 246.Beam Loading of Punched ChannelsLoad for punched channel is obtained by multiplying the loads shown by the following reduction factors:SS - Channel with Short Slots. . . . . . . . . . 0.90SL - Channel with Long Slots . . . . . . . . . 0.90H - Channel with Holes . . . . . . . . . . . . . 0.95KO - Knock-Out Channel. . . . . . . . . . . . . . 0.95 XChannel with Short Slots9⁄16\⁄8\Slots are punched on 2\Add \Example: W201SSChannel with Long Slots13⁄32\ x 3\Slots are punched on 4\Add \Example: W203SLChannel with Holes9⁄16\on 1-7⁄8\Add \Example: W202H
