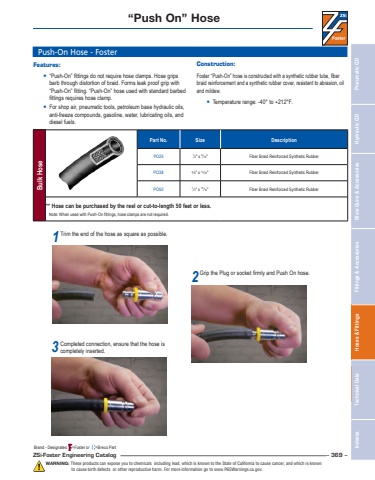

Page 369 - Demo

Technical Data Hoses Fittings Blow Guns Misc QD Straight Thru QD Hydraulic QD Pneumatic QD Indexes Technical Data Hoses & Fittings Fittings & Accessories Blow Guns & Accessories Hydraulic QD Pneumatic QDBrand - Designates =Foster or =Breco PartZSi-Foster Engineering Catalog – 369 –WARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.Features:• “Push-On” fittings do not require hose clamps. Hose grips barb through distortion of braid. Forms leak proof grip with “Push-On” fitting. “Push-On” hose used with standard barbed fittings requires hose clamp.• For shop air, pneumatic tools, petroleum base hydraulic oils, anti-freeze compounds, gasoline, water, lubricating oils, and diesel fuels. Construction: Foster “Push-On” hose is constructed with a synthetic rubber tube, fiber braid reinforcement and a synthetic rubber cover, resistant to abrasion, oil and mildew. • Temperature range: -40° to +212°F.“Push On” HosePush-On Hose - Foster Bulk HosePart No. Size DescriptionPO25 1⁄4\⁄16\Fiber Braid Reinforced Synthetic RubberPO38 3⁄ 8\Fiber Braid Reinforced Synthetic RubberPO50 1⁄ 2\Fiber Braid Reinforced Synthetic Rubber** Hose can be purchased by the reel or cut-to-length 50 feet or less. Note: When used with Push-On fittings, hose clamps are not required.Trim the end of the hose as square as possible.Grip the Plug or socket firmly and Push On hose.Completed connection, ensure that the hose is completely inserted.123
