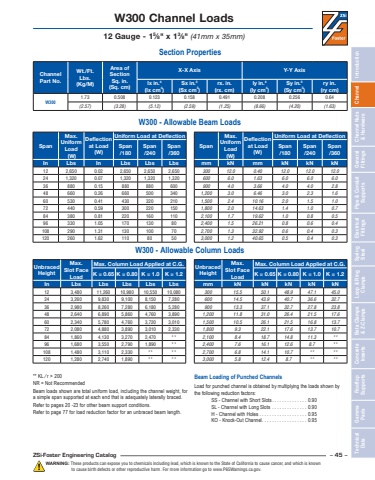

ZSi-Foster Engineering Catalog – 45 – Technical Data Gamma Pads Rooftop Supports Concrete Inserts Beta Clamps & Z-Clamps Loop & Ring Clamps Spring Steel Electrical Fittings Pipe & Conduit Supports General Fittings Channel Nuts & Hardware Channel IntroductionWARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.W300 Channel Loads12 Gauge - 15⁄8\⁄8\SpanMax. Uniform Load (W)Deflection at Load (W)Uniform Load at DeflectionSpan /180Span /240Span /360In Lbs In Lbs Lbs Lbs12 2,650 0.02 2,650 2,650 2,65024 1,320 0.07 1,320 1,320 1,32036 880 0.15 880 880 60048 660 0.26 660 500 34060 530 0.41 430 320 21072 440 0.59 300 220 15084 380 0.81 220 160 11096 330 1.05 170 130 80108 290 1.31 130 100 70120 260 1.62 110 80 50SpanMax. Uniform Load (W)Deflection at Load (W)Uniform Load at DeflectionSpan /180Span /240Span /360mm kN mm kN kN kN300 12.0 0.40 12.0 12.0 12.0600 6.0 1.63 6.0 6.0 6.0900 4.0 3.66 4.0 4.0 2.81,200 3.0 6.46 3.0 2.3 1.61,500 2.4 10.16 2.0 1.5 1.01,800 2.0 14.63 1.4 1.0 0.72,100 1.7 19.62 1.0 0.8 0.52,400 1.5 26.21 0.8 0.6 0.42,700 1.3 32.92 0.6 0.4 0.33,000 1.2 40.65 0.5 0.4 0.3W300 - Allowable Beam LoadsUnbracedHeightMax. Slot Face LoadMax. Column Load Applied at C.G.K = 0.65 K = 0.80 K = 1.0 K = 1.2In Lbs Lbs Lbs Lbs Lbs12 3,480 11,260 10,980 10,550 10,08024 3,260 9,830 9,100 8,150 7,28036 2,980 8,260 7,280 6,180 5,28048 2,640 6,890 5,860 4,760 3,89060 2,340 5,780 4,760 3,720 3,01072 2,080 4,880 3,890 3,010 2,33084 1,860 4,130 3,270 2,470 **96 1,680 3,550 2,790 1,890 **108 1,480 3,110 2,330 ** **120 1,280 2,740 1,890 ** **UnbracedHeightMax. Slot Face LoadMax. Column Load Applied at C.G.K = 0.65 K = 0.80 K = 1.0 K = 1.2mm kN kN kN kN kN300 15.5 50.1 48.9 47.1 45.0600 14.5 43.9 40.7 36.6 32.7900 13.3 37.1 32.7 27.8 23.81,200 11.8 31.0 26.4 21.5 17.61,500 10.5 26.1 21.5 16.8 13.71,800 9.3 22.1 17.6 13.7 10.72,100 8.4 18.7 14.8 11.3 **2,400 7.6 16.1 12.6 8.7 **2,700 6.8 14.1 10.7 ** **3,000 5.8 12.4 8.7 ** **W300 - Allowable Column Loads** KL ⁄ r > 200NR = Not RecommendedBeam loads shown are total uniform load, including the channel weight, for a simple span supported at each end that is adequately laterally braced. Refer to pages 20 -23 for other beam support conditions. Refer to page 77 for load reduction factor for an unbraced beam length.Beam Loading of Punched ChannelsLoad for punched channel is obtained by multiplying the loads shown by the following reduction factors:SS - Channel with Short Slots. . . . . . . . . . . . . . . 0.90SL - Channel with Long Slots . . . . . . . . . . . . . . . 0.90H - Channel with Holes . . . . . . . . . . . . . . . . . . . . 0.95KO - Knock-Out Channel. . . . . . . . . . . . . . . . . . . 0.95Section PropertiesChannel Part No.Wt./Ft. Lbs. (Kg/M)Area of Section Sq. in. (Sq. cm)X-X Axis Y-Y Axislx in.4 (lx cm4)Sx in.3(Sx cm3)rx. in.(rx. cm)ly in.4(ly cm4)Sy in.3(Sy cm3)ry in.(ry cm)W3001.73 0.508 0.123 0.158 0.491 0.208 0.256 0.64(2.57) (3.28) (5.12) (2.59) (1.25) (8.66) (4.20) (1.63)
