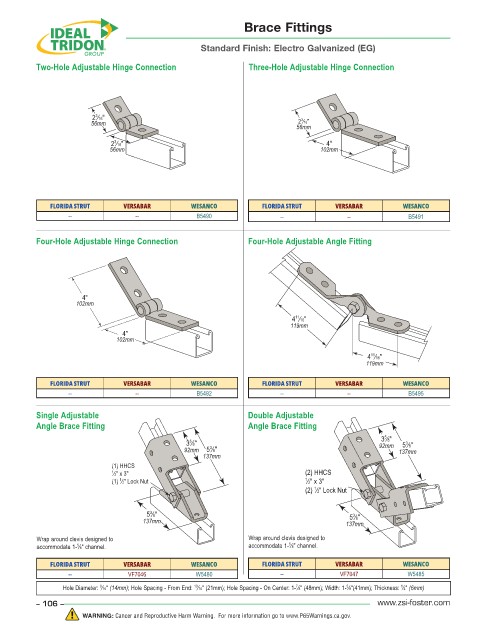

Brace Fittings

Standard Finish: Electro Galvanized (EG)

Two-Hole Adjustable Hinge Connection Three-Hole Adjustable Hinge Connection

2 ⁄16" 3
3
2 ⁄16"
56mm 56mm
3
2 ⁄16" 4"
56mm 102mm

FLORIDA STRUT VERSABAR WESANCO FLORIDA STRUT VERSABAR WESANCO
-- -- B5490 -- -- B5491

Four-Hole Adjustable Hinge Connection Four-Hole Adjustable Angle Fitting

4"
102mm
11
4 ⁄16"
119mm
4"
102mm
4 ⁄16"
11
119mm

FLORIDA STRUT VERSABAR WESANCO FLORIDA STRUT VERSABAR WESANCO
-- -- B5492 -- -- B5495

Single Adjustable Double Adjustable
Angle Brace Fitting Angle Brace Fitting
5
3 ⁄8"
5
3 ⁄8" 92mm 5 ⁄8"
3
3
92mm 5 ⁄8" 137mm
137mm
(1) HHCS
1 ⁄2" x 3" (2) HHCS
(1) ⁄2" Lock Nut 1 ⁄2" x 3"
1
(2) ⁄2" Lock Nut
1
3
5 ⁄8" 5 ⁄8"
3
137mm 137mm
Wrap around clevis designed to Wrap around clevis designed to
5
5
accommodate 1- ⁄8" channel. accommodate 1- ⁄8" channel.
FLORIDA STRUT VERSABAR WESANCO FLORIDA STRUT VERSABAR WESANCO
-- VF7046 W5480 -- VF7047 W5485
13
1
9
5
Hole Diameter: ⁄16" (14mm); Hole Spacing - From End: ⁄16" (21mm); Hole Spacing - On Center: 1- ⁄8" (48mm); Width: 1- ⁄8"(41mm); Thickness: ⁄4" (6mm)
7
– 106 – www.zsi-foster.com
