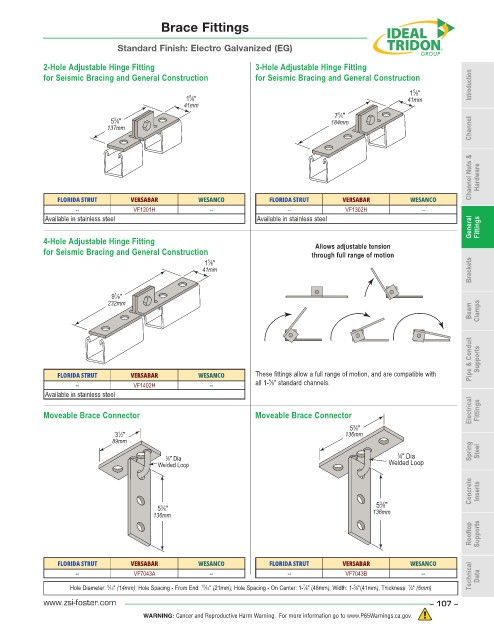

Page 107 - ZSi-Foster Product Catalog

Brace Fittings

Standard Finish: Electro Galvanized (EG)

2-Hole Adjustable Hinge Fitting 3-Hole Adjustable Hinge Fitting
for Seismic Bracing and General Construction for Seismic Bracing and General Construction

1 ⁄8" Introduction
5
1 ⁄8" 41mm
5
41mm
7 ⁄4"
1
5 ⁄8" 184mm
3
137mm Channel
Channel Nuts & Hardware

FLORIDA STRUT VERSABAR WESANCO FLORIDA STRUT VERSABAR WESANCO
-- VF1201H -- -- VF1302H --
Available in stainless steel Available in stainless steel
General Fittings
4-Hole Adjustable Hinge Fitting
Allows adjustable tension
for Seismic Bracing and General Construction through full range of motion
5
1 ⁄8"
41mm Brackets

1
9 ⁄8"
232mm
Beam Clamps

Pipe & Conduit Supports

FLORIDA STRUT VERSABAR WESANCO These fittings allow a full range of motion, and are compatible with
5
-- VF1402H -- all 1- ⁄8" standard channels.
Available in stainless steel
Electrical Fittings
Moveable Brace Connector Moveable Brace Connector
5 ⁄8"
3
3 ⁄2" 136mm
1
89mm
3 ⁄8" Dia 3 ⁄8" Dia Spring Steel
Welded Loop Welded Loop

Concrete Inserts

3
5 ⁄8" 5 ⁄8"
3
136mm 136mm
Rooftop Supports

FLORIDA STRUT VERSABAR WESANCO FLORIDA STRUT VERSABAR WESANCO
-- VF7043A -- -- VF7043B -- Technical Data
1
7
5
Hole Diameter: ⁄16" (14mm); Hole Spacing - From End: ⁄16" (21mm); Hole Spacing - On Center: 1- ⁄8" (48mm); Width: 1- ⁄8"(41mm); Thickness: ⁄4" (6mm)
9
13
www.zsi-foster.com – 107 –
