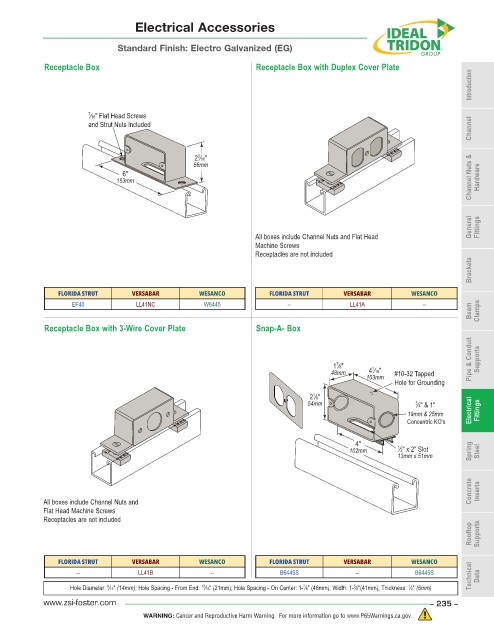

Page 235 - ZSi-Foster Product Catalog

Electrical Accessories

Standard Finish: Electro Galvanized (EG)

Receptacle Box Receptacle Box with Duplex Cover Plate
Introduction

7 ⁄16" Flat Head Screws
Channel
and Strut Nuts Included

2 ⁄16"
3
56mm
6"
153mm Channel Nuts & Hardware

General Fittings

All boxes include Channel Nuts and Flat Head
Machine Screws
Receptacles are not included
Brackets

FLORIDA STRUT VERSABAR WESANCO FLORIDA STRUT VERSABAR WESANCO
Beam Clamps
EF40 LL41NC W6445 -- LL41A --

Receptacle Box with 3-Wire Cover Plate Snap-A- Box
Pipe & Conduit Supports

1 ⁄8" 1
7
48mm 4 ⁄16" #10-32 Tapped
103mm
Hole for Grounding
2 ⁄8"
1
54mm 3 ⁄4" & 1"
19mm & 25mm Electrical Fittings
Concentric KO's

4"
102mm 1 ⁄2" x 2" Slot Spring Steel
13mm x 51mm

Concrete Inserts

All boxes include Channel Nuts and
Flat Head Machine Screws
Receptacles are not included
Rooftop Supports

FLORIDA STRUT VERSABAR WESANCO FLORIDA STRUT VERSABAR WESANCO
-- LL41B -- B6445S -- B6445S Technical Data
9
5
1
13
7
Hole Diameter: ⁄16" (14mm); Hole Spacing - From End: ⁄16" (21mm); Hole Spacing - On Center: 1- ⁄8" (48mm); Width: 1- ⁄8"(41mm); Thickness: ⁄4" (6mm)
www.zsi-foster.com – 235 –
