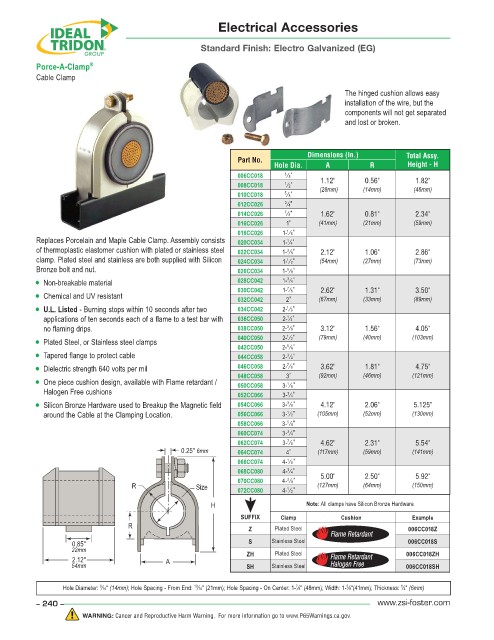

Page 240 - ZSi-Foster Product Catalog

Electrical Accessories

Standard Finish: Electro Galvanized (EG)

Porce-A-Clamp ®
Cable Clamp

The hinged cushion allows easy
installation of the wire, but the
components will not get separated
and lost or broken.

Dimensions (In.) Total Assy.
Part No.
Hole Dia. A R Height - H
006CC018 3 ⁄8" 1.12" 0.56" 1.82"
008CC018 1 ⁄2" (28mm) (14mm) (46mm)
010CC018 5 ⁄8"
012CC026 3 ⁄4"
014CC026 7 ⁄8" 1.62" 0.81" 2.34"
016CC026 1" (41mm) (21mm) (59mm)
1
018CC026 1- ⁄8"
Replaces Porcelain and Maple Cable Clamp. Assembly consists 020CC034 1- ⁄4"
1
of thermoplastic elastomer cushion with plated or stainless steel 022CC034 1- ⁄8" 2.12" 1.06" 2.86"
3
clamp. Plated steel and stainless are both supplied with Silicon 024CC034 1- ⁄2" (54mm) (27mm) (73mm)
1
Bronze bolt and nut. 026CC034 1- ⁄8"
5
3
• • Non-breakable material 028CC042 1- ⁄4"
030CC042 1- ⁄8" 2.62" 1.31" 3.50"
7
• • Chemical and UV resistant 032CC042 2" (67mm) (33mm) (89mm)
• • U.L. Listed - Burning stops within 10 seconds after two 034CC042 2- ⁄8"
1
applications of ten seconds each of a flame to a test bar with 036CC050 2- ⁄4"
1
no flaming drips. 038CC050 2- ⁄8" 3.12" 1.56" 4.05"
3
040CC050 2- ⁄2" (79mm) (40mm) (103mm)
1
• • Plated Steel, or Stainless steel clamps
5
042CC050 2- ⁄8"
• • Tapered flange to protect cable 044CC058 2- ⁄4"
3
7
• • Dielectric strength 640 volts per mil 046CC058 2- ⁄8" 3.62" 1.81" 4.75"
048CC058 3" (92mm) (46mm) (121mm)
• • One piece cushion design, available with Flame retardant / 050CC058 3- ⁄8"
1
Halogen Free cushions 052CC066 3- ⁄4"
1
• • Silicon Bronze Hardware used to Breakup the Magnetic field 054CC066 3- ⁄8" 4.12" 2.06" 5.125"
3
1
around the Cable at the Clamping Location. 056CC066 3- ⁄2" (105mm) (52mm) (130mm)
5
058CC066 3- ⁄8"
060CC074 3- ⁄4"
3
062CC074 3- ⁄8" 4.62" 2.31" 5.54"
7
0.25" 6mm 064CC074 4" (117mm) (59mm) (141mm)
1
066CC074 4- ⁄8"
1
068CC080 4- ⁄4" 5.00" 2.50" 5.92"
3
070CC080 4- ⁄8"
R Size 072CC080 4- ⁄2" (127mm) (64mm) (150mm)
1
H Note: All clamps have Silicon Bronze Hardware

SUFFIX Clamp Cushion Example
R Z Plated Steel 006CC018Z
Flame Retardant
Flame Retardant
0.85" S Stainless Steel 006CC018S
22mm ZH Plated Steel 006CC018ZH
Flame Retardant
2.12" A Flame Retardant
Halogen Free
Halogen Free
54mm SH Stainless Steel 006CC018SH
Hole Diameter: ⁄16" (14mm); Hole Spacing - From End: ⁄16" (21mm); Hole Spacing - On Center: 1- ⁄8" (48mm); Width: 1- ⁄8"(41mm); Thickness: ⁄4" (6mm)
5
1
9
7
13
