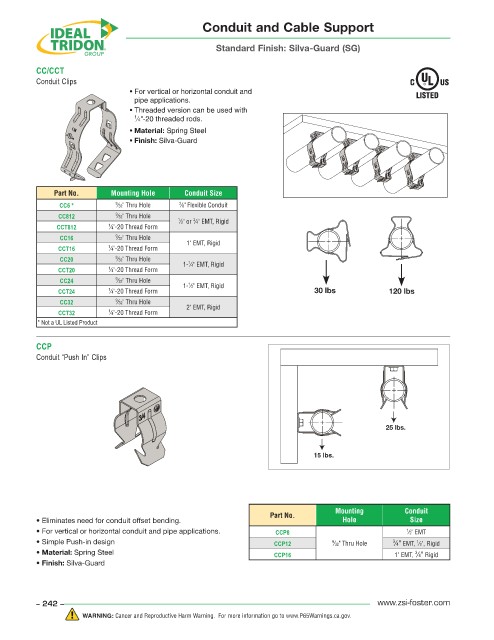

Page 242 - ZSi-Foster Product Catalog

Conduit and Cable Support

Standard Finish: Silva-Guard (SG)

CC/CCT
Conduit Clips
• For vertical or horizontal conduit and
pipe applications.
• Threaded version can be used with
1 ⁄4"-20 threaded rods.
• Material: Spring Steel
• Finish: Silva-Guard

Part No. Mounting Hole Conduit Size
CC6 * 9 ⁄32" Thru Hole 3 ⁄8" Flexible Conduit
CC812 9 ⁄32" Thru Hole
3
1 ⁄2" or ⁄4" EMT, Rigid
CCT812 1 ⁄4"-20 Thread Form
CC16 9 ⁄32" Thru Hole 1" EMT, Rigid
CCT16 1 ⁄4"-20 Thread Form
CC20 9 ⁄32" Thru Hole 1- ⁄4" EMT, Rigid
1
CCT20 1 ⁄4"-20 Thread Form
CC24 9 ⁄32" Thru Hole 1- ⁄2" EMT, Rigid
1
CCT24 1 ⁄4"-20 Thread Form 30 lbs 120 lbs
CC32 9 ⁄32" Thru Hole 2" EMT, Rigid
CCT32 1 ⁄4"-20 Thread Form
* Not a UL Listed Product

CCP
Conduit “Push In” Clips

25 lbs.

15 lbs.

Mounting Conduit
Part No.
• Eliminates need for conduit offset bending. Hole Size
• For vertical or horizontal conduit and pipe applications. CCP8 1 ⁄2" EMT
• Simple Push-in design CCP12 9 ⁄32" Thru Hole 3 ⁄4" EMT, ⁄2", Rigid
1
• Material: Spring Steel CCP16 1" EMT, ⁄4" Rigid
3
• Finish: Silva-Guard

– 242 – www.zsi-foster.com
