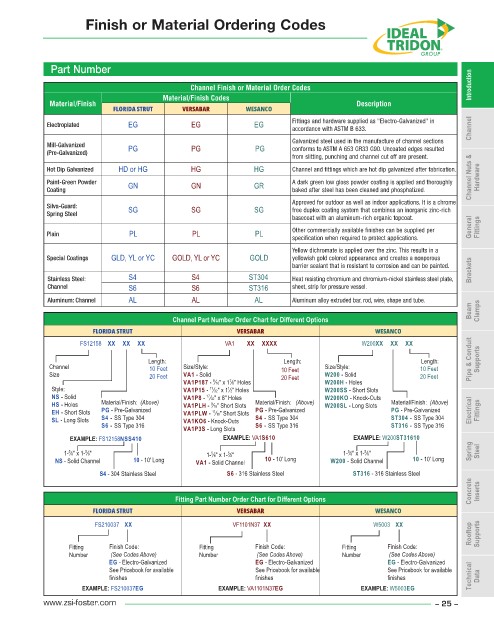

Finish or Material Ordering Codes

Part Number

Channel Finish or Material Order Codes Introduction
Material/Finish Codes
Material/Finish Description
FLORIDA STRUT VERSABAR WESANCO

Electroplated EG EG EG Fittings and hardware supplied as "Electro-Galvanized" in
accordance with ASTM B 633. Channel
Galvanized steel used in the manufacture of channel sections
Mill-Galvanized PG PG PG conforms to ASTM A 653 GR33 G90. Uncoated edges resulted
(Pre-Galvanized)
from slitting, punching and channel cut off are present.
Hot Dip Galvanized HD or HG HG HG Channel and fittings which are hot dip galvanized after fabrication.
Paint-Green Powder GN GN GR A dark green low gloss powder coating is applied and thoroughly Channel Nuts & Hardware
Coating baked after steel has been cleaned and phosphatized.
Approved for outdoor as well as indoor applications. It is a chrome
Silva-Guard: SG SG SG free duplex coating system that combines an inorganic zinc-rich
Spring Steel
basecoat with an aluminum-rich organic topcoat.
Plain PL PL PL Other commercially available finishes can be supplied per General Fittings
specification when required to protect applications.
Yellow dichromate is applied over the zinc. This results in a
Special Coatings GLD, YL or YC GOLD, YL or YC GOLD yellowish gold colored appearance and creates a nonporous
barrier sealant that is resistant to corrosion and can be painted. Brackets
Stainless Steel: S4 S4 ST304 Heat resisting chromium and chromium-nickel stainless steel plate,
Channel S6 S6 ST316 sheet, strip for pressure vessel.
Aluminum: Channel AL AL AL Aluminum alloy extruded bar, rod, wire, shape and tube.
Beam Clamps
Channel Part Number Order Chart for Different Options
FLORIDA STRUT VERSABAR WESANCO
FS12158 XX XX XX VA1 XX XXXX W200XX XX XX

Length: Length: Length: Pipe & Conduit Supports
Channel 10 Feet Size/Style: 10 Feet Size/Style: 10 Feet
Size 20 Feet VA1 - Solid 20 Feet W200 - Solid 20 Feet
VA1P187 - ⁄16" x 1 ⁄8" Holes W200H - Holes
7
9
Style: VA1P15 - ⁄32" x 1 ⁄2" Holes W200SS - Short Slots
1
17
NS - Solid VA1P8 - ⁄32" x 8" Holes W200KO - Knock-Outs
17
HS - Holes Material/Finish: (Above) VA1PLH - ⁄16" Short Slots Material/Finish: (Above) W200SL - Long Slots Material/Finish: (Above)
9
EH - Short Slots PG - Pre-Galvanized VA1PLW - ⁄16" Short Slots PG - Pre-Galvanized PG - Pre-Galvanized Electrical Fittings
11
SL - Long Slots S4 - SS Type 304 VA1KO6 - Knock-Outs S4 - SS Type 304 ST304 - SS Type 304
S6 - SS Type 316 S6 - SS Type 316 ST316 - SS Type 316
VA1P3S - Long Slots
EXAMPLE: FS12158NSS410 EXAMPLE: VA1S610 EXAMPLE: W200ST31610
5
1- ⁄8" x 1- ⁄8" 1- ⁄8" x 1- ⁄8" 1- ⁄8" x 1- ⁄8" Spring Steel
5
5
5
5
5
NS - Solid Channel 10 - 10' Long VA1 - Solid Channel 10 - 10' Long W200 - Solid Channel 10 - 10' Long
S4 - 304 Stainless Steel S6 - 316 Stainless Steel ST316 - 316 Stainless Steel
Concrete Inserts
Fitting Part Number Order Chart for Different Options
FLORIDA STRUT VERSABAR WESANCO
Rooftop Supports
FS210037 XX VF1101N37 XX W5003 XX
Fitting Finish Code: Fitting Finish Code: Fitting Finish Code:
Number (See Codes Above) Number (See Codes Above) Number (See Codes Above)
EG - Electro-Galvanized EG - Electro-Galvanized EG - Electro-Galvanized
See Pricebook for available See Pricebook for available See Pricebook for available
finishes finishes finishes Technical Data
EXAMPLE: FS210037EG EXAMPLE: VA1101N37EG EXAMPLE: W5003EG
