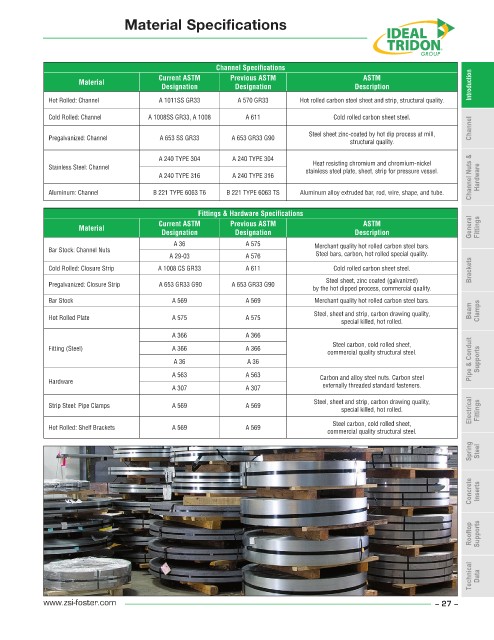

Material Specifications

Channel Specifications
Current ASTM Previous ASTM ASTM
Material
Designation Designation Description Introduction
Hot Rolled: Channel A 1011SS GR33 A 570 GR33 Hot rolled carbon steel sheet and strip, structural quality.

Cold Rolled: Channel A 1008SS GR33, A 1008 A 611 Cold rolled carbon sheet steel.
Steel sheet zinc-coated by hot dip process at mill, Channel
Pregalvanized: Channel A 653 SS GR33 A 653 GR33 G90 structural quality.

A 240 TYPE 304 A 240 TYPE 304
Heat resisting chromium and chromium-nickel
Stainless Steel: Channel stainless steel plate, sheet, strip for pressure vessel.
A 240 TYPE 316 A 240 TYPE 316 Channel Nuts & Hardware
Aluminum: Channel B 221 TYPE 6063 T6 B 221 TYPE 6063 TS Aluminum alloy extruded bar, rod, wire, shape, and tube.

Fittings & Hardware Specifications
Current ASTM Previous ASTM ASTM
Material General Fittings
Designation Designation Description
A 36 A 575 Merchant quality hot rolled carbon steel bars.
Bar Stock: Channel Nuts
A 29-03 A 576 Steel bars, carbon, hot rolled special quality.
Cold Rolled: Closure Strip A 1008 CS GR33 A 611 Cold rolled carbon sheet steel. Brackets
Steel sheet, zinc coated (galvanized)
Pregalvanized: Closure Strip A 653 GR33 G90 A 653 GR33 G90
by the hot dipped process, commercial quality.
Bar Stock A 569 A 569 Merchant quality hot rolled carbon steel bars.
Steel, sheet and strip, carbon drawing quality, Beam Clamps
Hot Rolled Plate A 575 A 575
special killed, hot rolled.
A 366 A 366
Steel carbon, cold rolled sheet,
Fitting (Steel) A 366 A 366
commercial quality structural steel.
A 36 A 36 Pipe & Conduit Supports
A 563 A 563 Carbon and alloy steel nuts. Carbon steel
Hardware
A 307 A 307 externally threaded standard fasteners.

Steel, sheet and strip, carbon drawing quality,
Strip Steel: Pipe Clamps A 569 A 569
special killed, hot rolled. Electrical Fittings
Steel carbon, cold rolled sheet,
Hot Rolled: Shelf Brackets A 569 A 569
commercial quality structural steel.
