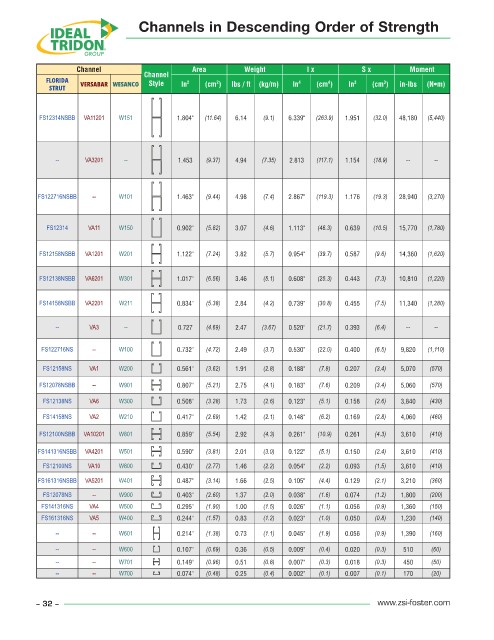

Channels in Descending Order of Strength
Channel Area Weight I x S x Moment
FLORIDA VERSABAR WESANCO Channel In 2 (cm ) lbs / ft (kg/m) In 4 (cm ) In 3 (cm ) in-lbs (N•m)
2
Style
4
3
STRUT
FS12314NSBB VA11201 W151 1.804" (11.64) 6.14 (9.1) 6.339" (263.9) 1.951 (32.0) 48,180 (5,440)
-- VA3201 -- 1.453 (9.37) 4.94 (7.35) 2.813 (117.1) 1.154 (18.9) -- --
FS122716NSBB -- W101 1.463" (9.44) 4.98 (7.4) 2.867" (119.3) 1.176 (19.3) 28,940 (3,270)
FS12314 VA11 W150 0.902" (5.82) 3.07 (4.6) 1.113" (46.3) 0.639 (10.5) 15,770 (1,780)
FS12158NSBB VA1201 W201 1.122" (7.24) 3.82 (5.7) 0.954" (39.7) 0.587 (9.6) 14,360 (1,620)
FS12138NSBB VA6201 W301 1.017" (6.56) 3.46 (5.1) 0.608" (25.3) 0.443 (7.3) 10,810 (1,220)
FS14158NSBB VA2201 W211 0.834" (5.38) 2.84 (4.2) 0.739" (30.8) 0.455 (7.5) 11,340 (1,280)
-- VA3 -- 0.727 (4.69) 2.47 (3.67) 0.520" (21.7) 0.393 (6.4) -- --
FS122716NS -- W100 0.732" (4.72) 2.49 (3.7) 0.530" (22.0) 0.400 (6.5) 9,820 (1,110)
FS12158NS VA1 W200 0.561" (3.62) 1.91 (2.8) 0.188" (7.8) 0.207 (3.4) 5,070 (570)
FS12078NSBB -- W901 0.807" (5.21) 2.75 (4.1) 0.183" (7.6) 0.209 (3.4) 5,060 (570)
FS12138NS VA6 W300 0.508" (3.28) 1.73 (2.6) 0.123" (5.1) 0.158 (2.6) 3,840 (430)
FS14158NS VA2 W210 0.417" (2.69) 1.42 (2.1) 0.148" (6.2) 0.169 (2.8) 4,060 (460)
FS12100NSBB VA10201 W801 0.859" (5.54) 2.92 (4.3) 0.261" (10.9) 0.261 (4.3) 3,610 (410)
FS141316NSBB VA4201 W501 0.590" (3.81) 2.01 (3.0) 0.122" (5.1) 0.150 (2.4) 3,610 (410)
FS12100NS VA10 W800 0.430" (2.77) 1.46 (2.2) 0.054" (2.2) 0.093 (1.5) 3,610 (410)
FS161316NSBB VA5201 W401 0.487" (3.14) 1.66 (2.5) 0.105" (4.4) 0.129 (2.1) 3,210 (360)
FS12078NS -- W900 0.403" (2.60) 1.37 (2.0) 0.038" (1.6) 0.074 (1.2) 1,800 (200)
FS141316NS VA4 W500 0.295" (1.90) 1.00 (1.5) 0.026" (1.1) 0.056 (0.9) 1,360 (150)
FS161316NS VA5 W400 0.244" (1.57) 0.83 (1.2) 0.023" (1.0) 0.050 (0.8) 1,230 (140)
-- -- W601 0.214" (1.38) 0.73 (1.1) 0.045" (1.9) 0.056 (0.9) 1,390 (160)
-- -- W600 0.107" (0.69) 0.36 (0.5) 0.009" (0.4) 0.020 (0.3) 510 (60)
-- -- W701 0.149" (0.96) 0.51 (0.8) 0.007" (0.3) 0.018 (0.3) 450 (50)
-- -- W700 0.074" (0.48) 0.25 (0.4) 0.002" (0.1) 0.007 (0.1) 170 (20)
