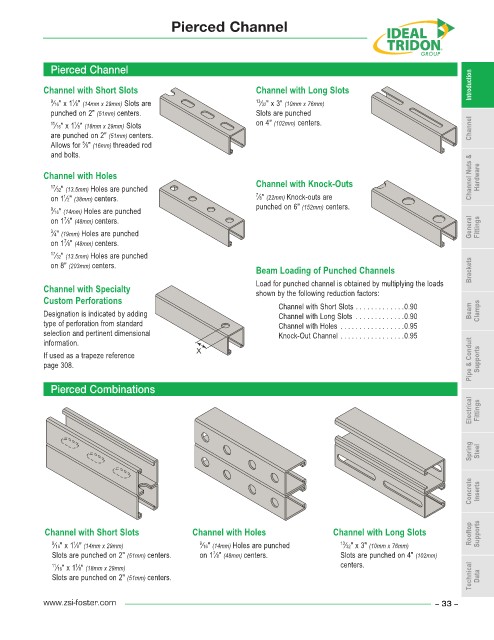

Page 33 - ZSi-Foster Product Catalog

Pierced Channel

Pierced Channel

Channel with Short Slots Channel with Long Slots Introduction
1
9 ⁄16" x 1 ⁄8" (14mm x 29mm) Slots are 13 ⁄32" x 3" (10mm x 76mm)
punched on 2" (51mm) centers. Slots are punched
11 ⁄16" x 1 ⁄8" (18mm x 29mm) Slots on 4" (102mm) centers. Channel
1
are punched on 2" (51mm) centers.
5
Allows for ⁄8" (16mm) threaded rod
and bolts.
Channel with Holes Channel Nuts & Hardware
17 ⁄32" (13.5mm) Holes are punched Channel with Knock-Outs
1
on 1 ⁄2" (38mm) centers. 7 ⁄8" (22mm) Knock-outs are
punched on 6" (152mm) centers.
9 ⁄16" (14mm) Holes are punched
7
on 1 ⁄8" (48mm) centers.
3 ⁄4" (19mm) Holes are punched General Fittings
7
on 1 ⁄8" (48mm) centers.
17 ⁄32" (13.5mm) Holes are punched
on 8" (203mm) centers.
Beam Loading of Punched Channels Brackets
Load for punched channel is obtained by multiplying the loads
Channel with Specialty shown by the following reduction factors:
Custom Perforations
Channel with Short Slots .............0.90
Designation is indicated by adding Channel with Long Slots .............0.90 Beam Clamps
type of perforation from standard Channel with Holes .................0.95
selection and pertinent dimensional Knock-Out Channel .................0.95
information.
X
If used as a trapeze reference Pipe & Conduit Supports
page 308.

Pierced Combinations
Electrical Fittings

Spring Steel

Concrete Inserts

Channel with Short Slots Channel with Holes Channel with Long Slots Rooftop Supports
1
9 ⁄16" x 1 ⁄8" (14mm x 29mm) 9 ⁄16" (14mm) Holes are punched 13 ⁄32" x 3" (10mm x 76mm)
Slots are punched on 2" (51mm) centers. on 1 ⁄8" (48mm) centers. Slots are punched on 4" (102mm)
7
1
11 ⁄16" x 1 ⁄8" (18mm x 29mm) centers.
Slots are punched on 2" (51mm) centers. Technical Data
www.zsi-foster.com – 33 –
