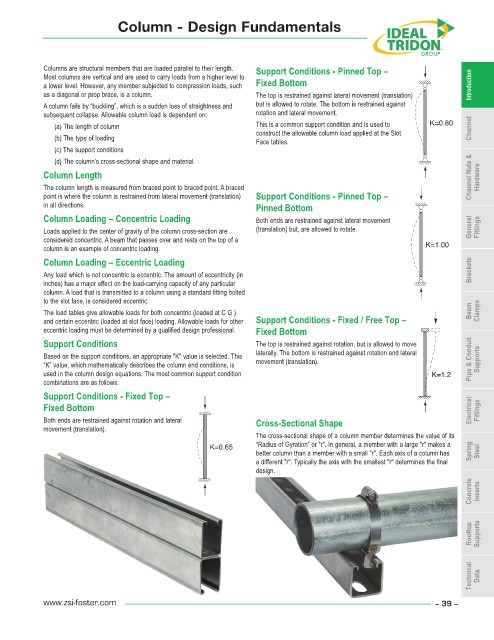

Column - Design Fundamentals





            Columns are structural members that are loaded parallel to their length.   Support Conditions - Pinned Top –
            Most columns are vertical and are used to carry loads from a higher level to
            a lower level. However, any member subjected to compression loads, such   Fixed Bottom                    Introduction
            as a diagonal or prop brace, is a column.           The top is restrained against lateral movement (translation)
            A column fails by “buckling”, which is a sudden loss of straightness and   but is allowed to rotate. The bottom is restrained against
            subsequent collapse. Allowable column load is dependent on:  rotation and lateral movement.
               (a) The length of column                         This is a common support condition and is used to   K=0.80  Channel
                                                                construct the allowable column load applied at the Slot
               (b) The type of loading
                                                                Face tables.
               (c) The support conditions
               (d) The column’s cross-sectional shape and material.
            Column Length                                                                                             Channel Nuts &   Hardware
            The column length is measured from braced point to braced point. A braced
            point is where the column is restrained from lateral movement (translation)   Support Conditions - Pinned Top –
            in all directions.                                  Pinned Bottom
            Column Loading – Concentric Loading                 Both ends are restrained against lateral movement
            Loads applied to the center of gravity of the column cross-section are   (translation) but, are allowed to rotate.  General   Fittings
            considered concentric. A beam that passes over and rests on the top of a
            column is an example of concentric loading.                                                    K=1.00
            Column Loading – Eccentric Loading
            Any load which is not concentric is eccentric. The amount of eccentricity (in                             Brackets
            inches) has a major effect on the load-carrying capacity of any particular
            column. A load that is transmitted to a column using a standard fitting bolted
            to the slot face, is considered eccentric.
            The load tables give allowable loads for both concentric (loaded at C G )                                 Beam   Clamps
            and certain eccentric (loaded at slot face) loading. Allowable loads for other   Support Conditions - Fixed / Free Top –
            eccentric loading must be determined by a qualified design professional.  Fixed Bottom
            Support Conditions                                  The top is restrained against rotation, but is allowed to move
                                                                laterally. The bottom is restrained against rotation and lateral
            Based on the support conditions, an appropriate "K" value is selected. This                               Pipe & Conduit   Supports
            “K” value, which mathematically describes the column end conditions, is   movement (translation).
            used in the column design equations. The most common support condition                          K=1.2
            combinations are as follows:
            Support Conditions - Fixed Top –
            Fixed Bottom                                                                                              Electrical   Fittings
            Both ends are restrained against rotation and lateral   Cross-Sectional Shape
            movement (translation).
                                                                The cross-sectional shape of a column member determines the value of its
                                                                “Radius of Gyration” or "r". In general, a member with a large "r" makes a
                                                     K=0.65
                                                                better column than a member with a small "r". Each axis of a column has   Spring   Steel
                                                                a different "r". Typically the axis with the smallest "r" determines the final
                                                                design.
