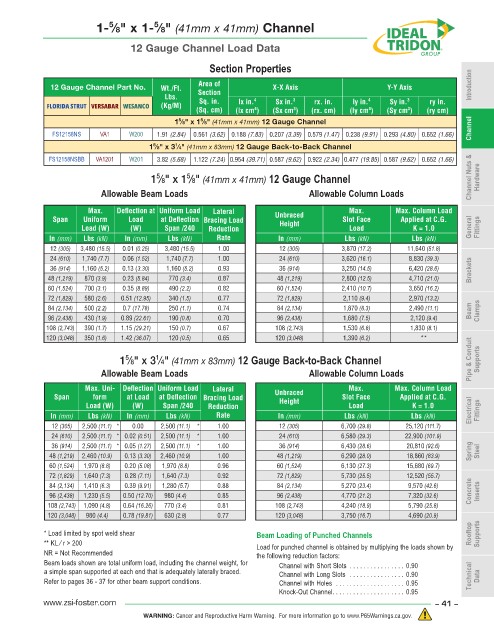

P. 41

5
                         1- ⁄8" x 1- ⁄8" (41mm x 41mm) Channel
                                       5
                                 12 Gauge Channel Load Data


                                                     Section Properties

              12 Gauge Channel Part No.  Wt./Ft.   Area of           X-X Axis                    Y-Y Axis             Introduction
                                          Lbs.    Section       4         3                 4         3
             FLORIDA STRUT VERSABAR WESANCO  (Kg/M)  Sq. in.   lx in.  Sx in.  rx. in.  ly in.    Sy in.   ry in.
                                                  (Sq. cm)  (lx cm )  (Sx cm )  (rx. cm)  (ly cm )  (Sy cm )  (ry cm)
                                                                                            4
                                                                                                      3
                                                                4
                                                                          3
                                             5
                                                   5
                                            1 ⁄8" x 1 ⁄8" (41mm x 41mm) 12 Gauge Channel
              FS12158NS   VA1    W200   1.91 (2.84)  0.561 (3.62) 0.188 (7.83) 0.207 (3.39) 0.579 (1.47) 0.238 (9.91) 0.293 (4.80) 0.652 (1.66)  Channel
                                      1 ⁄8" x 3 ⁄4" (41mm x 83mm) 12 Gauge Back-to-Back Channel
                                            1
                                       5
             FS12158NSBB  VA1201  W201  3.82 (5.68)  1.122 (7.24) 0.954 (39.71) 0.587 (9.62) 0.922 (2.34) 0.477 (19.85) 0.587 (9.62) 0.652 (1.66)
                                               5
                                        5
                                      1 ⁄8" x 1 ⁄8" (41mm x 41mm) 12 Gauge Channel                                    Channel Nuts &   Hardware
                          Allowable Beam Loads                                Allowable Column Loads
                       Max.    Deflection at  Uniform Load   Lateral                    Max.       Max. Column Load
              Span    Uniform    Load    at Deflection Bracing Load   Unbraced        Slot Face     Applied at C.G.
                                                                      Height
                     Load (W)    (W)      Span /240  Reduction                          Load           K = 1.0        General   Fittings
             In (mm)  Lbs (kN)  In (mm)    Lbs (kN)    Rate           In (mm)         Lbs (kN)         Lbs (kN)
             12 (305)  3,480 (15.5)  0.01 (0.25)  3,480 (15.5)  1.00  12 (305)        3,870 (17.2)    11,640 (51.8)
             24 (610)  1,740 (7.7)  0.06 (1.52)  1,740 (7.7)  1.00    24 (610)        3,620 (16.1)    8,830 (39.3)
             36 (914)  1,160 (5.2)  0.13 (3.30)  1,160 (5.2)  0.93    36 (914)        3,250 (14.5)    6,420 (28.6)    Brackets
             48 (1,219)  870 (3.9)  0.23 (5.84)  770 (3.4)  0.87      48 (1,219)      2,800 (12.5)    4,710 (21.0)
             60 (1,524)  700 (3.1)  0.35 (8.89)  490 (2.2)  0.82      60 (1,524)      2,410 (10.7)    3,650 (16.2)
             72 (1,829)  580 (2.6)  0.51 (12.95)  340 (1.5)  0.77     72 (1,829)      2,110 (9.4)     2,970 (13.2)
             84 (2,134)  500 (2.2)  0.7 (17.78)  250 (1.1)  0.74      84 (2,134)      1,870 (8.3)     2,490 (11.1)    Beam   Clamps
             96 (2,438)  430 (1.9)  0.89 (22.61)  190 (0.8)  0.70     96 (2,438)      1,680 (7.5)      2,120 (9.4)
            108 (2,743)  390 (1.7)  1.15 (29.21)  150 (0.7)  0.67    108 (2,743)      1,530 (6.8)      1,830 (8.1)
            120 (3,048)  350 (1.6)  1.42 (36.07)  120 (0.5)  0.65    120 (3,048)      1,390 (6.2)        **

                                5
                                        1
                               1 ⁄8" x 3 ⁄4" (41mm x 83mm) 12 Gauge Back-to-Back Channel                              Pipe & Conduit   Supports
                          Allowable Beam Loads                                Allowable Column Loads
                      Max. Uni-  Deflection  Uniform Load   Lateral   Unbraced         Max.        Max. Column Load
              Span      form    at Load   at Deflection Bracing Load   Height         Slot Face     Applied at C.G.
                      Load (W)    (W)    Span /240   Reduction                         Load            K = 1.0
              In (mm)  Lbs (kN)  In (mm)  Lbs (kN)     Rate           In (mm)         Lbs (kN)         Lbs (kN)       Electrical   Fittings
              12 (305)  2,500 (11.1) *  0.00  2,500 (11.1)  *  1.00   12 (305)        6,700 (29.8)    25,120 (111.7)
              24 (610)  2,500 (11.1) * 0.02 (0.51)  2,500 (11.1)  *  1.00  24 (610)   6,580 (29.3)   22,900 (101.9)
              36 (914)  2,500 (11.1) * 0.05 (1.27)  2,500 (11.1)  *  1.00  36 (914)   6,430 (28.6)    20,810 (92.6)   Spring
             48 (1,219)  2,460 (10.9)    0.13 (3.30)  2,460 (10.9)    1.00  48 (1,219)  6,290 (28.0)  18,860 (83.9)     Steel
             60 (1,524)  1,970 (8.8)    0.20 (5.08)  1,970 (8.8)     0.96  60 (1,524)  6,130 (27.3)   15,680 (69.7)
             72 (1,829)  1,640 (7.3)    0.28 (7.11)  1,640 (7.3)     0.92  72 (1,829)  5,730 (25.5)   12,520 (55.7)
             84 (2,134)  1,410 (6.3)    0.39 (9.91)  1,280 (5.7)     0.88  84 (2,134)  5,270 (23.4)   9,570 (42.6)
             96 (2,438)  1,230 (5.5)   0.50 (12.70)  980 (4.4)     0.85  96 (2,438)   4,770 (21.2)    7,320 (32.6)    Concrete   Inserts
             108 (2,743)  1,090 (4.8)   0.64 (16.26)  770 (3.4)     0.81  108 (2,743)  4,240 (18.9)   5,790 (25.8)
             120 (3,048)  980 (4.4)    0.78 (19.81)  630 (2.8)     0.77  120 (3,048)  3,750 (16.7)    4,690 (20.9)

            * Load limited by spot weld shear                    Beam Loading of Punched Channels                     Rooftop   Supports
            ** KL ⁄ r > 200                                      Load for punched channel is obtained by multiplying the loads shown by
            NR = Not Recommended                                 the following reduction factors:
            Beam loads shown are total uniform load, including the channel weight, for   Channel with Short Slots  ................ 0.90
            a simple span supported at each end that is adequately laterally braced.   Channel with Long Slots  ................ 0.90  Technical
            Refer to pages 36 - 37 for other beam support conditions.   Channel with Holes  .................... 0.95   Data
                                                                      Knock-Out Channel ..................... 0.95
