P. 72

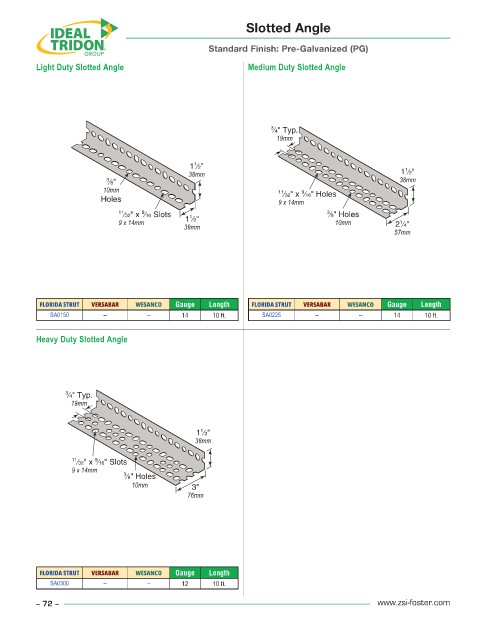

Slotted Angle
Standard Finish: Pre-Galvanized (PG)
Light Duty Slotted Angle Medium Duty Slotted Angle
3 ⁄4" Typ.
19mm
1
1 ⁄2"
1
38mm 1 ⁄2"
3 ⁄8" 38mm
10mm 11 ⁄32" x ⁄16" Holes
9
Holes 9 x 14mm
9
11 ⁄32" x ⁄16 Slots 1 3 ⁄8" Holes
9 x 14mm 1 ⁄2" 10mm 2 ⁄4"
1
38mm
57mm
FLORIDA STRUT VERSABAR WESANCO Gauge Length FLORIDA STRUT VERSABAR WESANCO Gauge Length
SA0150 -- -- 14 10 ft. SA0225 -- -- 14 10 ft.
Heavy Duty Slotted Angle
3 ⁄4" Typ.
19mm
1 ⁄2"
1
38mm
11 9
⁄32" x ⁄16" Slots
9 x 14mm
3
⁄8" Holes
10mm 3"
76mm
FLORIDA STRUT VERSABAR WESANCO Gauge Length
SA0300 -- -- 12 10 ft.
– 72 – www.zsi-foster.com
