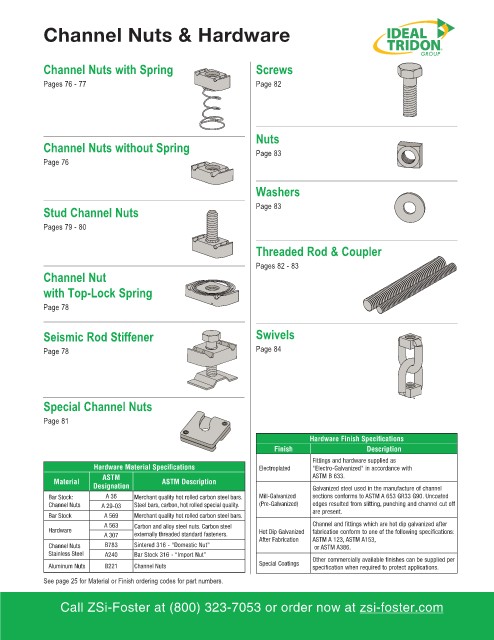

Channel Nuts & Hardware

Channel Nuts with Spring Screws
Pages 76 - 77 Page 82

Nuts
Channel Nuts without Spring
Page 83
Page 76

Washers

Stud Channel Nuts Page 83
Pages 79 - 80

Threaded Rod & Coupler
Pages 82 - 83
Channel Nut
with Top-Lock Spring

Page 78

Seismic Rod Stiffener Swivels

Page 78 Page 84

Special Channel Nuts A
Page 81

Hardware Finish Specifications
Finish Description
Fittings and hardware supplied as
Hardware Material Specifications Electroplated "Electro-Galvanized" in accordance with
ASTM ASTM B 633.
Material ASTM Description
Designation Galvanized steel used in the manufacture of channel
Bar Stock: A 36 Merchant quality hot rolled carbon steel bars. Mill-Galvanized sections conforms to ASTM A 653 GR33 G90. Uncoated
Channel Nuts A 29-03 Steel bars, carbon, hot rolled special quality. (Pre-Galvanized) edges resulted from slitting, punching and channel cut off
Bar Stock A 569 Merchant quality hot rolled carbon steel bars. are present.
A 563 Carbon and alloy steel nuts. Carbon steel Channel and fittings which are hot dip galvanized after
Hardware Hot Dip Galvanized fabrication conform to one of the following specifications:
A 307 externally threaded standard fasteners.
After Fabrication ASTM A 123, ASTM A153,
Channel Nuts B783 Sintered 316 - “Domestic Nut” or ASTM A386.
Stainless Steel A240 Bar Stock 316 - “Import Nut” Other commercially available finishes can be supplied per
Aluminum Nuts B221 Channel Nuts Special Coatings specification when required to protect applications.
See page 25 for Material or Finish ordering codes for part numbers.
