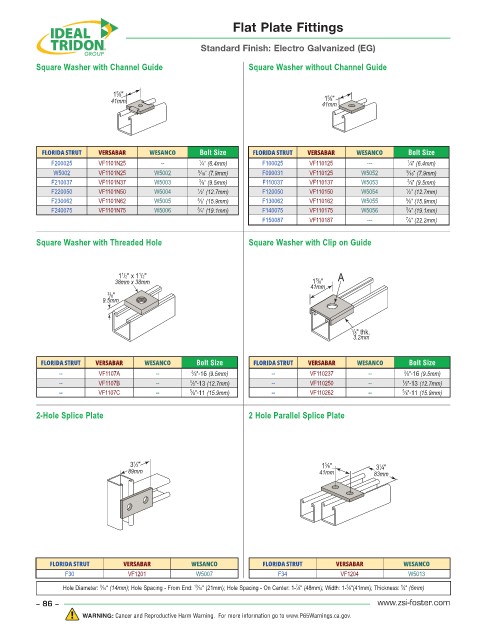

Page 86 - ZSi-Foster Product Catalog

Flat Plate Fittings

Standard Finish: Electro Galvanized (EG)

Square Washer with Channel Guide Square Washer without Channel Guide

1 ⁄8"
5
1 ⁄8"
5
41mm 41mm

FLORIDA STRUT VERSABAR WESANCO Bolt Size FLORIDA STRUT VERSABAR WESANCO Bolt Size
F200025 VF1101N25 -- 1 ⁄4" (6.4mm) F100025 VF110125 --- 1 ⁄4" (6.4mm)
W5002 VF1101N25 W5002 5 ⁄16" (7.9mm) F090031 VF110125 W5052 5 ⁄16" (7.9mm)
F210037 VF1101N37 W5003 3 ⁄8" (9.5mm) F110037 VF110137 W5053 3 ⁄8" (9.5mm)
F220050 VF1101N50 W5004 1 ⁄2" (12.7mm) F120050 VF110150 W5054 1 ⁄2" (12.7mm)
F230062 VF1101N62 W5005 5 ⁄8" (15.9mm) F130062 VF110162 W5055 5 ⁄8" (15.9mm)
F240075 VF1101N75 W5006 3 ⁄4" (19.1mm) F140075 VF110175 W5056 3 ⁄4" (19.1mm)
F150087 VF110187 --- 7 ⁄8" (22.2mm)

Square Washer with Threaded Hole Square Washer with Clip on Guide

1 /2" x 1 /2" A
1
1
5
38mm x 38mm 1 /8"
41mm
3 /8"
9.5mm
1 /8" thk.
3.2mm

FLORIDA STRUT VERSABAR WESANCO Bolt Size FLORIDA STRUT VERSABAR WESANCO Bolt Size
-- VF1107A -- 3 ⁄8"-16 (9.5mm) -- VF110237 -- 3 ⁄8"-16 (9.5mm)
-- VF1107B -- 1 ⁄2"-13 (12.7mm) -- VF110250 -- 1 ⁄2"-13 (12.7mm)
-- VF1107C -- 5 ⁄8"-11 (15.9mm) -- VF110262 -- 5 ⁄8"-11 (15.9mm)

2-Hole Splice Plate 2 Hole Parallel Splice Plate

3 ⁄2" 1 ⁄8" 3 ⁄4"
1
5
1
89mm 41mm 83mm

FLORIDA STRUT VERSABAR WESANCO FLORIDA STRUT VERSABAR WESANCO
F30 VF1201 W5007 F34 VF1204 W5013
1
5
13
9
Hole Diameter: ⁄16" (14mm); Hole Spacing - From End: ⁄16" (21mm); Hole Spacing - On Center: 1- ⁄8" (48mm); Width: 1- ⁄8"(41mm); Thickness: ⁄4" (6mm)
7
– 86 – www.zsi-foster.com
