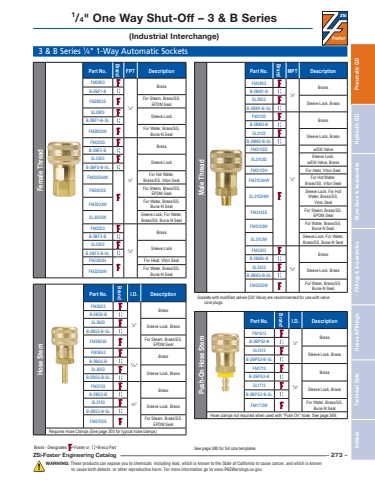

Brand - Designates =Foster or =Breco Part Indexes Technical Data Hoses & Fittings Fittings & Accessories Blow Guns & Accessories Hydraulic QD Pneumatic QDZSi-Foster Engineering Catalog – 273 –WARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.Female ThreadPart No. BrandFPT DescriptionFM28031⁄ 8\BrassB-2BF1-BFM2803S For Steam, Brass/SS, EPDM SealSL2803Sleeve LockB-2BF1-B-SLFM2803W For Water, Brass/SS, Buna-N SealFM30031⁄4\BrassB-2BF2-BSL3003Sleeve LockB-2BF2-B-SLFM3003HW For Hot Water, Brass/SS, Viton SealFM3003S For Steam, Brass/SS, EPDM SealFM3003W For Water, Brass/SS, Buna-N SealSL3003W Sleeve Lock, For Water, Brass/SS, Buna-N SealFM32033⁄ 8\BrassB-2BF3-BSL3203Sleeve LockB-2BF3-B-SLFM3203H For Heat, Viton SealFM3203W For Water, Brass/SS, Buna-N SealMale ThreadPart No. BrandMPT DescriptionFM29031⁄ 8\BrassB-2BM1-BSL2903Sleeve Lock, BrassB-2BM1-B-SLFM31031⁄4\BrassB-2BM2-BSL3103Sleeve Lock, BrassB-2BM2-B-SLFM3103D w/Dill ValveSL3103D Sleeve Lock, w/Dill Valve, BrassFM3103H For Heat, Viton SealFM3103HW For Hot Water, Brass/SS, Viton SealSL3103HWSleeve Lock, For Hot Water, Brass/SS, Viton SealFM3103S For Steam, Brass/SS, EPDM SealFM3103W For Water, Brass/SS, Buna-N SealSL3103W Sleeve Lock, For Water, Brass/SS, Buna-N SealFM33033⁄ 8\BrassB-2BM3-BSL3303Sleeve Lock, BrassB-2BM3-B-SLFM3303W For Water, Brass/SS, Buna-N Seal3 & B Series 1⁄4\Push-On Hose StemPart No. BrandI.D. DescriptionFM15131⁄4\BrassB-2BPS2-BSL1513Sleeve Lock, BrassB-2BPS2-B-SLFM17133⁄ 8\BrassB-2BPS3-BSL1713Sleeve Lock, BrassB-2BPS3-B-SLFM1713W For Water, Brass/SS, Buna-N SealHose clamps not required when used with “Push On” hose. See page 369.Hose StemPart No. BrandI.D. DescriptionFM36031⁄4\BrassB-2BS2-BSL3603Sleeve Lock, BrassB-2BS2-B-SLFM3603S For Steam, Brass/SS, EPDM SealFM36535⁄16\BrassB-2BS5-BSL3653Sleeve Lock, BrassB-2BS5-B-SLFM37033⁄ 8\BrassB-2BS3-BSL3703Sleeve Lock, BrassB-2BS3-B-SLFM3703S For Steam, Brass/SS, EPDM SealRequires Hose Clamps (See page 200 for typical hose clamps)Sockets with modified valves (Dill Valve) are recommended for use with valve core plugs. 1/4\(Industrial Interchange)See page 380 for full size templates
