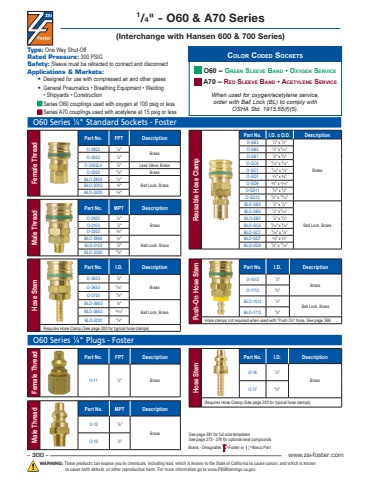

– 300 – www.zsi-foster.comWARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.Brand - Designates =Foster or =Breco PartType: One Way Shut-OffRated Pressure: 300 PSIGSafety: Sleeve must be retracted to connect and disconnectApplications & Markets:• Designed for use with compressed air and other gases• General Pneumatics • Breathing Equipment • Welding • Shipyards • Construction■ Series O60 couplings used with oxygen at 100 psig or less■ Series A70 couplings used with acetylene at 15 psig or lessO60 Series 1⁄4\Female ThreadPart No. FPT DescriptionO-11 1⁄4\BrassO60 Series 1⁄4\Male ThreadPart No. MPT DescriptionO-2903 1⁄ 8\O-3103 Brass 1⁄4\O-3303 3⁄ 8\BLO-2903 1⁄ 8\BLO-3103 Ball Lock, Brass 1⁄4\BLO-3303 3⁄ 8\Female ThreadPart No. FPT DescriptionO-2803 1⁄ 8\BrassO-3003 1⁄4\O-3003LV 1⁄4\Less Valve, BrassO-3203 3⁄ 8\BrassBLO-2803 1⁄ 8\BLO-3003 Ball Lock, Brass 1⁄4\BLO-3203 3⁄ 8\Male ThreadPart No. MPT DescriptionO-12 1⁄ 8\BrassO-10 1⁄4\Hose StemPart No. I.D. DescriptionO-16 1⁄4\BrassO-17 3⁄ 8\Requires Hose Clamp (See page 200 for typical hose clamps)Reusable Hose ClampPart No. I.D. x O.D. DescriptionO-SB3 1⁄4\⁄ 2\BrassO-SB5 1⁄4\⁄16\O-SB7 1⁄4\⁄ 8\O-SC5 5⁄16\⁄16\O-SC7 5⁄16\⁄ 8\O-SD7 3⁄ 8\⁄ 8\O-SD9 3⁄ 8\O-SD11 3⁄ 8\⁄4\O-SD13 3⁄ 8\BLO-SB3 1⁄4\⁄ 2\Ball Lock, BrassBLO-SB5 1⁄4\⁄16\BLO-SB7 1⁄4\⁄ 8\BLO-SC5 5⁄16\⁄16\BLO-SC7 5⁄16\⁄ 8\BLO-SD7 3⁄ 8\⁄ 8\BLO-SD9 3⁄ 8\Push-On Hose StemPart No. I.D. DescriptionO-1513 1⁄4\BrassO-1713 3⁄ 8\BLO-1513 1⁄4\Ball Lock, BrassBLO-1713 3⁄ 8\Hose clamps not required when used with “Push On” hose. See page 369.Hose StemPart No. I.D. DescriptionO-3603 1⁄4\O-3653 Brass 5⁄16\O-3703 3⁄ 8\BLO-3603 1⁄4\BLO-3653 Ball Lock, Brass 15⁄16\BLO-3703 3⁄ 8\Requires Hose Clamp (See page 200 for typical hose clamps)1/4\(Interchange with Hansen 600 & 700 Series)See page 381 for full size templatesSee page 373 - 374 for optional seal compoundsColor Coded SocketsO60 – Green Sleeve Band • Oxygen ServiceA70 – Red Sleeve Band • Acetylene ServiceWhen used for oxygen/acetylene service, order with Ball Lock (BL) to comply with OSHA Std. 1915.55(f)(5).
