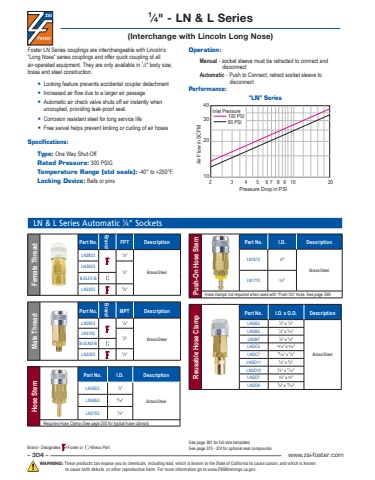

Brand - Designates =Foster or =Breco Part– 304 – www.zsi-foster.comWARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.1⁄4\(Interchange with Lincoln Long Nose)Foster LN Series couplings are interchangeable with Lincoln’s “Long Nose” series couplings and offer quick coupling of allair-operated equipment. They are only available in 1⁄4\brass and steel construction.• Locking feature prevents accidental coupler detachment• Increased air flow due to a larger air passage• Automatic air check valve shuts off air instantly when uncoupled, providing leak-proof seal.• Corrosion resistant steel for long service life• Free swivel helps prevent kinking or curling of air hosesPerformance:“LN” Series20 10 40 30 2 3 4 5 6 7 8 9 10 20Pressure Drop in PSI Air Flow in SCFMInlet Pressure 100 PSI 80 PSIOperation:Manual - socket sleeve must be retracted to connect and disconnectAutomatic - Push to Connect, retract socket sleeve to disconnectSpecifications:Type: One Way Shut-OffRated Pressure: 300 PSIGTemperature Range (std seals): -40° to +250°F.Locking Device: Balls or pinsLN & L Series Automatic 1⁄4\Female ThreadPart No. BrandFPT DescriptionLN2803 1⁄ 8\Brass/SteelLN3003 1⁄4\B-2LF2-BLN3203 3⁄ 8\Male ThreadPart No. BrandMPT DescriptionLN2903 1⁄ 8\Brass/SteelLN3103 1⁄4\B-2LM2-BLN3303 3⁄ 8\Reusable Hose ClampPart No. I.D. x O.D. DescriptionLNSB3 1⁄4\⁄ 2\Brass/SteelLNSB5 1⁄4\⁄16\LNSB7 1⁄4\⁄ 8\LNSC5 15⁄16\⁄16\LNSC7 15⁄16\⁄ 8\LNSD11 3⁄ 8\⁄ 8\LNSD13 3⁄ 8\LNSD7 3⁄ 8\⁄4\LNSD9 3⁄ 8\Hose StemPart No. I.D. DescriptionLN3603 1⁄4\LN3653 Brass/Steel 5⁄16\LN3703 3⁄ 8\Requires Hose Clamp (See page 200 for typical hose clamps)Push-On Hose StemPart No. I.D. DescriptionLN1513 1⁄4\Brass/SteelLN1713 3⁄ 8\Hose clamps not required when used with “Push On” hose. See page 369.See page 381 for full size templatesSee page 373 - 374 for optional seal compounds
