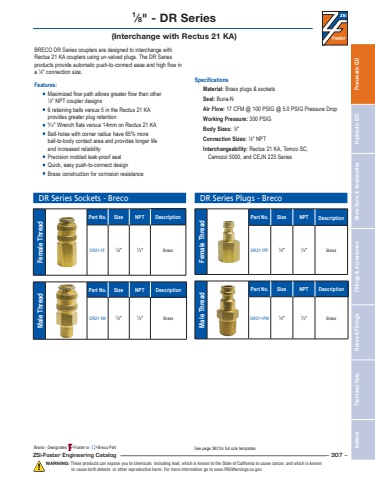

Brand - Designates =Foster or =Breco Part Indexes Technical Data Hoses & Fittings Fittings & Accessories Blow Guns & Accessories Hydraulic QD Pneumatic QDZSi-Foster Engineering Catalog – 307 –WARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.BRECO DR Series couplers are designed to interchange with Rectus 21 KA couplers using un-valved plugs. The DR Series products provide automatic push-to-connect ease and high flow in a 1⁄8\Features:• Maximized flow path allows greater flow than other1⁄8\• 6 retaining balls versus 5 in the Rectus 21 KA provides greater plug retention• 9⁄16\• Ball-holes with corner radius have 65% more ball-to-body contact area and provides longer life and increased reliability• Precision molded leak-proof seal• Quick, easy push-to-connect design• Brass construction for corrosion resistance1⁄8\(Interchange with Rectus 21 KA)DR Series Sockets - Breco DR Series Plugs - BrecoSpecificationsMaterial: Brass plugs & socketsSeal: Buna-NAir Flo 17 CFM @ 100 PSIG @ 5.0 PSIG Pressure DropWorking Pressure: 300 PSIGBody Sizes: 1⁄8\Connection Sizes: 1⁄8\Interchangeability: Rectus 21 KA, Tomco SC, Camozzi 5000, and CEJN 223 SeriesFemale ThreadPart No. Size NPT DescriptionDR21-1F 1⁄ 8\1⁄ 8\Brass Female ThreadPart No. Size NPT DescriptionDR21-1PF 1⁄ 8\1⁄ 8\BrassMale ThreadPart No. Size NPT DescriptionDR21-1M 1⁄ 8\1⁄ 8\Brass Male ThreadPart No. Size NPT DescriptionDR21-1PM 1⁄ 8\1⁄ 8\BrassSee page 382 for full size templates
