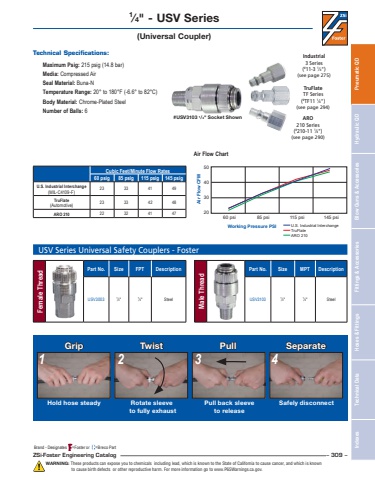

Brand - Designates =Foster or =Breco Part Indexes Technical Data Hoses & Fittings Fittings & Accessories Blow Guns & Accessories Hydraulic QD Pneumatic QDZSi-Foster Engineering Catalog – 309 –WARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.USV Series Universal Safety Couplers - Foster1⁄4\(Universal Coupler)Hold hose steadyGrip Twist Pull SeparateRotate sleeve to fully exhaustPull back sleeveto releaseSafely disconnect1 2 3 4Cubic Feet/Minute Flow Rates60 psig 85 psig 115 psig 145 psigU.S. Industrial Interchange (MIL-C4109-F) 23 33 41 49TruFlate (Automotive) 23 33 42 48ARO 210 22 32 41 4760 psiWorking Pressure PSIAir Flow CFM85 psi 115 psi 145 psi20304050U.S. Industrial InterchangeTruFlateARO 210Technical Specifications:Maximum Psig: 215 psig (14.8 bar)Media: Compressed AirSeal Material: Buna-NTemperature Range: 20° to 180°F (-6.6° to 82°C)Body Material: Chrome-Plated SteelNumber of Balls: 6Air Flow ChartTruFlateTF Series(#TF11 1⁄4\(see page 294)ARO210 Series(#210-11 1⁄4\(see page 290)Industrial3 Series(#11-3 1⁄4\(see page 275)#USV3103 1/4\Female ThreadPart No. Size FPT DescriptionUSV3003 1⁄4\1⁄4\Steel Male ThreadPart No. Size MPT DescriptionUSV3103 1⁄4\1⁄4\Steel
