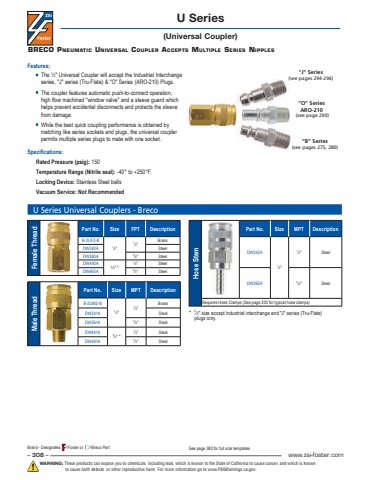

Brand - Designates =Foster or =Breco Part– 308 – www.zsi-foster.comWARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.U Series Universal Couplers - BrecoBRECO Pneumatic Universal Coupler Accepts Multiple Series NipplesFeatures:• The 1⁄4\series, \• The coupler features automatic push-to-connect operation, high flow machined \helps prevent accidental disconnects and protects the sleeve from damage.• While the best quick coupling performance is obtained by matching like series sockets and plugs, the universal coupler permits multiple series plugs to mate with one socket.Specifications:Rated Pressure (psig): 150Temperature Range (Nitrile seal): -40° to +250°F.Locking Device: Stainless Steel ballsVacuum Service: Not Recommended\ Series(see pages 275, 280)\ Series(see pages 294-296)\ Series ARO-210 (see page 290)* 3⁄ 8\plugs only.U Series(Universal Coupler)Female ThreadPart No. Size FPT DescriptionB-2UF2-B1⁄4\1⁄4\BrassDW340A SteelDW360A 3⁄ 8\SteelDW440A 3⁄ 8\1⁄4\SteelDW460A 3⁄ 8\SteelMale ThreadPart No. Size MPT DescriptionB-2UM2-B1⁄4\1⁄4\BrassDW341A SteelDW361A 3⁄ 8\SteelDW441A 3⁄ 8\1⁄4\SteelDW461A 3⁄ 8\SteelHose StemPart No. Size MPT DescriptionDW342A1⁄4\1⁄4\SteelDW362A 3⁄ 8\SteelRequires Hose Clamps (See page 200 for typical hose clamps)See page 382 for full size templates
