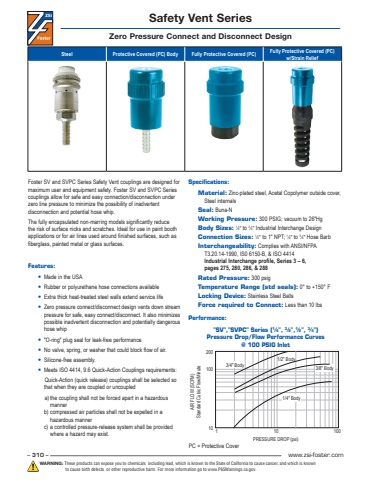

– 310 – www.zsi-foster.comWARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.Foster SV and SVPC Series Safety Vent couplings are designed for maximum user and equipment safety. Foster SV and SVPC Series couplings allow for safe and easy connection/disconnection under zero line pressure to minimize the possibility of inadvertent disconnection and potential hose whip.The fully encapsulated non-marring models significantly reduce the risk of surface nicks and scratches. Ideal for use in paint booth applications or for air lines used around finished surfaces, such as fiberglass, painted metal or glass surfaces.Features:• Made in the USA• Rubber or polyurethane hose connections available• Extra thick heat-treated steel walls extend service life• Zero pressure connect/disconnect design vents down stream pressure for safe, easy connect/disconnect. It also minimizes possible inadvertent disconnection and potentially dangerous hose whip• \• No valve, spring, or washer that could block flow of air.• Silicone-free assembly.• Meets ISO 4414, 9.6 Quick-Action Couplings requirements: Quick-Action (quick release) couplings shall be selected sothat when they are coupled or uncoupled a) the coupling shall not be forced apart in a hazardous mannerb) compressed air particles shall not be expelled in a hazardous mannerc) a controlled pressure-release system shall be provided where a hazard may exist.Specifications:Material: Zinc-plated steel, Acetal Copolymer outside cover, Steel internalsSeal: Buna-NWorking Pressure: 300 PSIG; vacuum to 26\Body Sizes: 1⁄4\⁄4\Connection Sizes: 1⁄4\⁄4\⁄4\Interchangeability: Complies with ANSI/NFPA T3.20.14-1990, IS0 6150-B, & ISO 4414Industrial Interchange profile, Series 3 – 6, pages 275, 280, 286, & 288Rated Pressure: 300 psigTemperature Range (std seals): 0° to +150° FLocking Device: Stainless Steel BallsForce required to Connect: Less than 10 lbsPerformance:\,\Pressure Drop/Flow Performance Curves @ 100 PSIG InletSteel Protective Covered (PC) Body Fully Protective Covered (PC) Fully Protective Covered (PC)w/Strain ReliefSafety Vent SeriesZero Pressure Connect and Disconnect Design100100200101/2\10 1PRESSURE DROP (psi)AIR FLOW (SCFM) Standard Cubic Flow/Minute3/4\1/4\3/8\PC = Protective Cover
