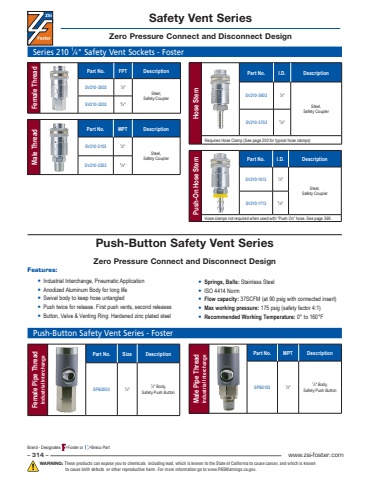

Brand - Designates =Foster or =Breco Part– 314 – www.zsi-foster.comWARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.Push-Button Safety Vent Series - Foster Female Pipe Thread Industrial InterchangePart No. Size DescriptionSPB3003 1⁄4\1⁄4\Safety Push Button Male Pipe Thread Industrial InterchangePart No. MPT DescriptionSPB3103 1⁄4\1⁄4\Safety Push ButtonFeatures:• Industrial Interchange, Pneumatic Application• Anodized Aluminum Body for long life• Swivel body to keep hose untangled• Push twice for release. First push vents, second releases• Button, Valve & Venting Ring: Hardened zinc plated steel• Springs, Balls: Stainless Steel• ISO 4414 Norm• Flow capacity: 37SCFM (at 90 psig with connected insert)• Max working pressure: 175 psig (safety factor 4:1)• Recommended Working Temperature: 0° to 160°FPush-Button Safety Vent SeriesZero Pressure Connect and Disconnect DesignMale ThreadPart No. MPT DescriptionSV210-3103 1⁄4\Steel,Safety CouplerSV210-3303 3⁄ 8\Series 210 1⁄4\Female ThreadPart No. FPT DescriptionSV210-3003 1⁄4\Steel,Safety CouplerSV210-3203 3⁄ 8\Hose StemPart No. I.D. DescriptionSV210-3603 1⁄4\Steel,Safety CouplerSV210-3703 3⁄ 8\Requires Hose Clamp (See page 200 for typical hose clamps)Push-On Hose StemPart No. I.D. DescriptionSV210-1513 1⁄4\Steel,Safety CouplerSV210-1713 3⁄ 8\Hose clamps not required when used with “Push On” hose. See page 369.Safety Vent SeriesZero Pressure Connect and Disconnect Design
