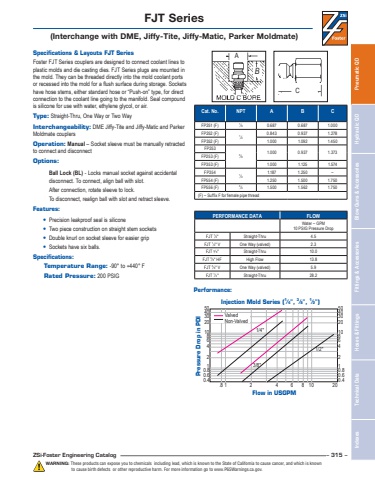

Indexes Technical Data Hoses & Fittings Fittings & Accessories Blow Guns & Accessories Hydraulic QD Pneumatic QDZSi-Foster Engineering Catalog – 315 –WARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.Performance:Injection Mold Series (1⁄4\.8 1 2 4 6 8 10 20 2146810205040300.80.60.42146810205040300.80.60.41/4\3/8\1/2\ValvedNon-ValvedFlow in USGPMPressure Drop in PDISpecifications & Layouts FJT SeriesFoster FJT Series couplers are designed to connect coolant lines to plastic molds and die casting dies. FJT Series plugs are mounted in the mold. They can be threaded directly into the mold coolant ports or recessed into the mold for a flush surface during storage. Sockets have hose stems, either standard hose or “Push-on” type, for direct connection to the coolant line going to the manifold. Seal compound is silicone for use with water, ethylene glycol, or air.Type: Straight-Thru, One Way or Two WayInterchangeability: DME Jiffy-Tite and Jiffy-Matic and Parker Moldmate couplersOperation: Manual – Socket sleeve must be manually retracted to connect and disconnectOptions:Ball Lock (BL) - Locks manual socket against accidental disconnect. To connect, align ball with slot.After connection, rotate sleeve to lock.To disconnect, realign ball with slot and retract sleeve.Features:• Precision leakproof seal is silicone• Two piece construction on straight stem sockets• Double knurl on socket sleeve for easier grip • Sockets have six balls.Specifications: Temperature Range: -90° to +440° FRated Pressure: 200 PSIGCat. No. NPT A B CFP251 (F) 1⁄ 8 0.687 0.687 1.000FP252 (F) 1⁄40.843 0.937 1.278FP352 (F) 1.000 1.092 1.450FP2533⁄ 81.000 0.937 1.373FP253 (F)FP353 (F) 1.000 1.125 1.574FP354 1⁄ 21.187 1.250 –FP554 (F) 1.250 1.500 1.750FP556 (F) 3⁄4 1.500 1.562 1.750(F) – Suffix F for female pipe threadCABPERFORMANCE DATA FLOWWater – GPM10 PSIG Pressure DropFJT 1⁄4\Straight-Thru 4.5FJT 1⁄4\One Way (valved) 2.3FJT 3⁄ 8\Straight-Thru 10.0FJT 3⁄ 8\High Flow 13.8FJT 3⁄ 8\One Way (valved) 5.9FJT 1⁄ 2\Straight-Thru 28.2FJT Series(Interchange with DME, Jiffy-Tite, Jiffy-Matic, Parker Moldmate)
