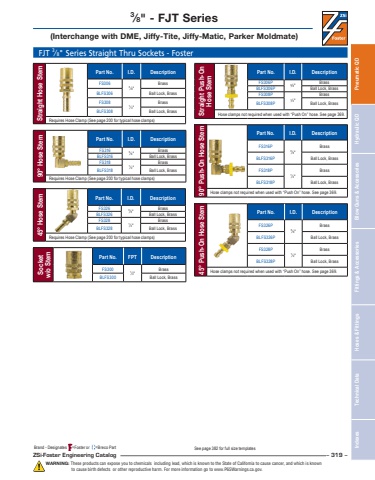

Brand - Designates =Foster or =Breco Part Indexes Technical Data Hoses & Fittings Fittings & Accessories Blow Guns & Accessories Hydraulic QD Pneumatic QDZSi-Foster Engineering Catalog – 319 –WARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.FJT 3⁄8\Straight Hose StemPart No. I.D. DescriptionFS306 3⁄ 8\BrassBLFS306 Ball Lock, BrassFS308 1⁄ 2\BrassBLFS308 Ball Lock, BrassRequires Hose Clamp (See page 200 for typical hose clamps)45° Hose StemPart No. I.D. DescriptionFS326 3⁄ 8\BrassBLFS326 Ball Lock, BrassFS328 1⁄ 2\BrassBLFS328 Ball Lock, BrassRequires Hose Clamp (See page 200 for typical hose clamps)90° Hose StemPart No. I.D. DescriptionFS316 3⁄ 8\BrassBLFS316 Ball Lock, BrassFS318 1⁄ 2\BrassBLFS318 Ball Lock, BrassRequires Hose Clamp (See page 200 for typical hose clamps)45° Push-On Hose StemPart No. I.D. DescriptionFS326P 3⁄ 8\BrassBLFS326P Ball Lock, BrassFS328P 1⁄ 2\BrassBLFS328P Ball Lock, BrassHose clamps not required when used with “Push On” hose. See page 369.90° Push-On Hose StemPart No. I.D. DescriptionFS316P 3⁄ 8\BrassBLFS316P Ball Lock, BrassFS318P 1⁄ 2\BrassBLFS318P Ball Lock, BrassHose clamps not required when used with “Push On” hose. See page 369.Socket w/o StemPart No. FPT DescriptionFS300 1⁄4\BrassBLFS300 Ball Lock, BrassStraight Push-On Hose StemPart No. I.D. DescriptionFS306P 3⁄ 8\BrassBLFS306P Ball Lock, BrassFS308P 1⁄ 2\BrassBLFS308P Ball Lock, BrassHose clamps not required when used with “Push On” hose. See page 369.See page 382 for full size templates3⁄8\(Interchange with DME, Jiffy-Tite, Jiffy-Matic, Parker Moldmate)
