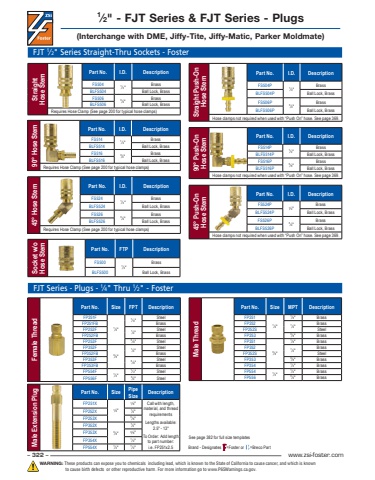

– 322 – www.zsi-foster.comWARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.Brand - Designates =Foster or =Breco Part Straight Push-On Hose StemPart No. I.D. DescriptionFS504P 1⁄ 2\BrassBLFS504P Ball Lock, BrassFS506P 3⁄4\BrassBLFS506P Ball Lock, BrassHose clamps not required when used with “Push On” hose. See page 369.Straight Hose StemPart No. I.D. DescriptionFS504 1⁄ 2\BrassBLFS504 Ball Lock, BrassFS506 3⁄4\BrassBLFS506 Ball Lock, BrassRequires Hose Clamp (See page 200 for typical hose clamps)45° Hose StemPart No. I.D. DescriptionFS524 1⁄ 2\BrassBLFS524 Ball Lock, BrassFS526 3⁄4\BrassBLFS526 Ball Lock, BrassRequires Hose Clamp (See page 200 for typical hose clamps)90° Hose StemPart No. I.D. DescriptionFS514 1⁄ 2\BrassBLFS514 Ball Lock, BrassFS516 3⁄4\BrassBLFS516 Ball Lock, BrassRequires Hose Clamp (See page 200 for typical hose clamps)45° Push-On Hose StemPart No. I.D. DescriptionFS524P 1⁄ 2\BrassBLFS524P Ball Lock, BrassFS526P 3⁄4\BrassBLFS526P Ball Lock, BrassHose clamps not required when used with “Push On” hose. See page 369.90° Push-On Hose StemPart No. I.D. DescriptionFS514P 1⁄ 2\BrassBLFS514P Ball Lock, BrassFS516P 3⁄ 8\BrassBLFS516P Ball Lock, BrassHose clamps not required when used with “Push On” hose. See page 369.FJT 1⁄ 2\Socket w/o Hose StemPart No. FTP DescriptionFS500 1⁄ 2\BrassBLFS500 Ball Lock, BrassSee page 382 for full size templates1⁄2\(Interchange with DME, Jiffy-Tite, Jiffy-Matic, Parker Moldmate)FJT Series - Plugs - 1⁄4\⁄ 2\Female ThreadPart No. Size FPT DescriptionFP251F1⁄4\1⁄ 8\SteelFP251FB BrassFP252F 1⁄4\SteelFP252FB BrassFP253F 3⁄ 8\SteelFP352F3⁄ 8\1⁄4\SteelFP352FB BrassFP353F 3⁄ 8\SteelFP353FB BrassFP554F 1⁄ 2\1⁄ 2\SteelFP556F 3⁄4\SteelMale ThreadPart No. Size MPT DescriptionFP2511⁄4\1⁄ 8\BrassFP252 1⁄4\BrassFP252S SteelFP253 3⁄ 8\BrassFP3513⁄ 8\1⁄ 8\BrassFP352 1⁄4\BrassFP352S SteelFP353 3⁄ 8\BrassFP354 1⁄ 2\BrassFP554 1⁄ 2\1⁄ 2\BrassFP556 3⁄4\BrassMale Extension PlugPart No. Size Pipe Size DescriptionFP251X1⁄4\1⁄ 8\Call with length, material, and thread requirementsLengths available:2.5\To Order: Add length to part number: i.e. FP251x2.5FP252X 1⁄4\FP253X 3⁄ 8\FP352X3⁄ 8\1⁄4\FP353X 3⁄ 8\FP354X 1⁄ 2\FP554X 1⁄ 2\1⁄ 2\
