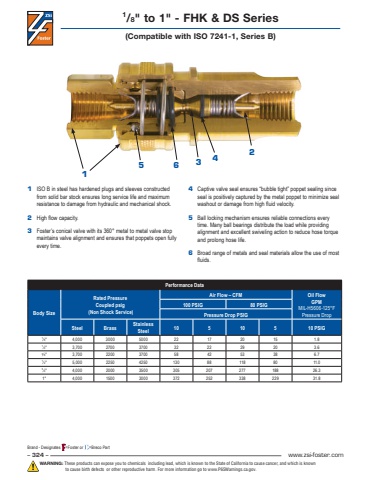

Brand - Designates =Foster or =Breco Part– 324 – www.zsi-foster.comWARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.Performance DataBody SizeRated PressureCoupled psig (Non Shock Service)Air Flow – CFM Oil FlowGPMMIL-H5606-125°F Pressure Drop100 PSIG 80 PSIGPressure Drop PSIGSteel Brass Stainless Steel 10 5 10 5 10 PSIG1⁄ 8\4,000 3000 5000 22 17 20 15 1.81⁄4\3,700 2700 3700 32 22 29 20 3.63⁄ 8\3,700 2200 3700 58 42 53 38 6.71⁄ 2\5,000 2250 4250 130 88 118 80 11.03⁄4\4,000 2000 3500 305 207 277 188 26.31\4,000 1500 3000 372 252 338 229 31.81/8\(Compatible with ISO 7241-1, Series B)1 ISO B in steel has hardened plugs and sleeves constructed from solid bar stock ensures long service life and maximum resistance to damage from hydraulic and mechanical shock.2 High flow capacity.3 Foster’s conical valve with its 360° metal to metal valve stop maintains valve alignment and ensures that poppets open fully every time.4 Captive valve seal ensures “bubble tight” poppet sealing since seal is positively captured by the metal poppet to minimize seal washout or damage from high fluid velocity. 5 Ball locking mechanism ensures reliable connections every time. Many ball bearings distribute the load while providing alignment and excellent swiveling action to reduce hose torque and prolong hose life. 6 Broad range of metals and seal materials allow the use of most fluids.15 6 3 4 2
