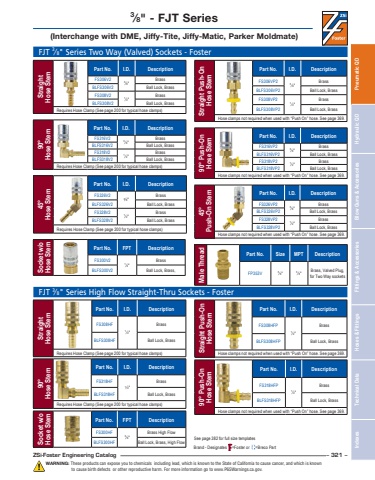

Indexes Technical Data Hoses & Fittings Fittings & Accessories Blow Guns & Accessories Hydraulic QD Pneumatic QDZSi-Foster Engineering Catalog – 321 –WARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.Brand - Designates =Foster or =Breco PartFJT 3⁄8\Straight Hose StemPart No. I.D. DescriptionFS306V2 3⁄ 8\BrassBLFS306V2 Ball Lock, BrassFS308V2 1⁄ 2\BrassBLFS308V2 Ball Lock, BrassRequires Hose Clamp (See page 200 for typical hose clamps)45° Hose StemPart No. I.D. DescriptionFS326V2 3⁄ 8\BrassBLFS326V2 Ball Lock, BrassFS328V2 1⁄ 2\BrassBLFS328V2 Ball Lock, BrassRequires Hose Clamp (See page 200 for typical hose clamps)90° Hose StemPart No. I.D. DescriptionFS316V2 3⁄ 8\BrassBLFS316V2 Ball Lock, BrassFS318V2 1⁄ 2\BrassBLFS318V2 Ball Lock, BrassRequires Hose Clamp (See page 200 for typical hose clamps)Straight Push-On Hose StemPart No. I.D. DescriptionFS306VP2 3⁄ 8\BrassBLFS306VP2 Ball Lock, BrassFS308VP2 1⁄ 2\BrassBLFS308VP2 Ball Lock, BrassHose clamps not required when used with “Push On” hose. See page 369.45° Push-On StemPart No. I.D. DescriptionFS326VP2 3⁄ 8\BrassBLFS326VP2 Ball Lock, BrassFS328VP2 1⁄ 2\BrassBLFS328VP2 Ball Lock, BrassHose clamps not required when used with “Push On” hose. See page 369.Straight Hose StemPart No. I.D. DescriptionFS308HF1⁄ 2\BrassBLFS308HF Ball Lock, BrassRequires Hose Clamp (See page 200 for typical hose clamps)90° Hose StemPart No. I.D. DescriptionFS318HF1⁄ 2\BrassBLFS318HF Ball Lock, BrassRequires Hose Clamp (See page 200 for typical hose clamps)FJT 3⁄8\Straight Push-On Hose StemPart No. I.D. DescriptionFS308HFP1⁄ 2\BrassBLFS308HFP Ball Lock, BrassHose clamps not required when used with “Push On” hose. See page 369.90° Push-On Hose StemPart No. I.D. DescriptionFS318HFP1⁄ 2\BrassBLFS318HFP Ball Lock, BrassHose clamps not required when used with “Push On” hose. See page 369.90° Push-On Hose StemPart No. I.D. DescriptionFS316VP2 3⁄ 8\BrassBLFS316VP2 Ball Lock, BrassFS318VP2 1⁄ 2\BrassBLFS318VP2 Ball Lock, BrassHose clamps not required when used with “Push On” hose. See page 369.Socket w/o Hose StemPart No. FPT DescriptionFS300HF 3⁄ 8\Brass High FlowBLFS300HF Ball Lock, Brass, High FlowSocket w/o Hose StemPart No. FPT DescriptionFS300V2 1⁄4\BrassBLFS300V2 Ball Lock, Brass,See page 382 for full size templates Male ThreadPart No. Size MPT DescriptionFP353V 3⁄ 8\3⁄ 8\Brass, Valved Plug, for Two Way sockets3⁄8\(Interchange with DME, Jiffy-Tite, Jiffy-Matic, Parker Moldmate)
