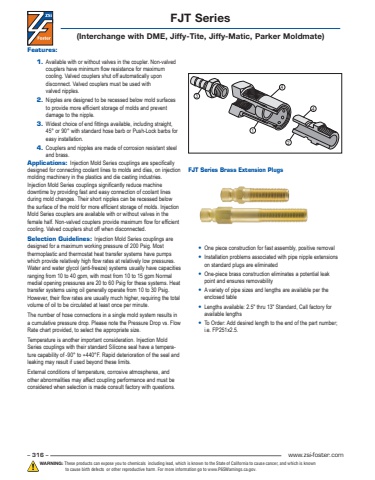

– 316 – www.zsi-foster.comWARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.Features: 1. Available with or without valves in the coupler. Non-valved couplers have minimum flow resistance for maximum cooling. Valved couplers shut off automatically upon disconnect. Valved couplers must be used with valved nipples. 2. Nipples are designed to be recessed below mold surfaces to provide more efficient storage of molds and prevent damage to the nipple.3. Widest choice of end fittings available, including straight, 45° or 90° with standard hose barb or Push-Lock barbs for easy installation.4. Couplers and nipples are made of corrosion resistant steel and brass.Applications: Injection Mold Series couplings are specifically designed for connecting coolant lines to molds and dies, on injection molding machinery in the plastics and die casting industries. Injection Mold Series couplings significantly reduce machine downtime by providing fast and easy connection of coolant lines during mold changes. Their short nipples can be recessed below the surface of the mold for more efficient storage of molds. Injection Mold Series couplers are available with or without valves in the female half. Non-valved couplers provide maximum flow for efficient cooling. Valved couplers shut off when disconnected.Selection Guidelines: Injection Mold Series couplings are designed for a maximum working pressure of 200 Psig. Most thermoplastic and thermostat heat transfer systems have pumps which provide relatively high flow rates at relatively low pressures. Water and water glycol (anti-freeze) systems usually have capacities ranging from 10 to 40 gpm, with most from 10 to 15 gpm Normal medial opening pressures are 20 to 60 Psig for these systems. Heat transfer systems using oil generally operate from 10 to 30 Psig. However, their flow rates are usually much higher, requiring the total volume of oil to be circulated at least once per minute.The number of hose connections in a single mold system results in a cumulative pressure drop. Please note the Pressure Drop vs. Flow Rate chart provided, to select the appropriate size.Temperature is another important consideration. Injection Mold Series couplings with their standard Silicone seal have a temperature capability of -90° to +440°F. Rapid deterioration of the seal and leaking may result if used beyond these limits.External conditions of temperature, corrosive atmospheres, and other abnormalities may affect coupling performance and must be considered when selection is made consult factory with questions.31244• One piece construction for fast assembly, positive removal• Installation problems associated with pipe nipple extensions on standard plugs are eliminated• One-piece brass construction eliminates a potential leak point and ensures removability• A variety of pipe sizes and lengths are available per the enclosed table• Lengths available: 2.5\available lengths• To Order: Add desired length to the end of the part number; i.e. FP251x2.5.FJT Series Brass Extension PlugsFJT Series(Interchange with DME, Jiffy-Tite, Jiffy-Matic, Parker Moldmate)
