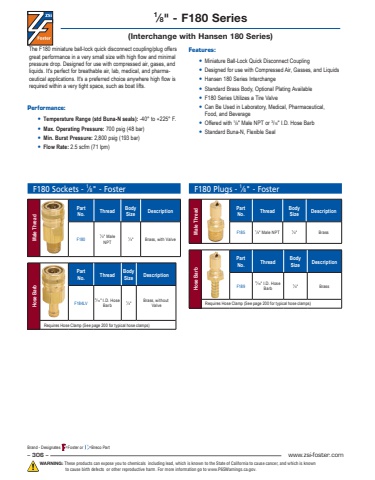

Brand - Designates =Foster or =Breco Part– 306 – www.zsi-foster.comWARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.1⁄8\(Interchange with Hansen 180 Series)Hose BarbPart No. Thread Body Size DescriptionF184LV3⁄ 16\Barb1⁄ 8\Brass, without ValveRequires Hose Clamp (See page 200 for typical hose clamps)Hose BarbPart No. Thread Body Size DescriptionF1893⁄ 16\Barb1⁄ 8\BrassRequires Hose Clamp (See page 200 for typical hose clamps)Male ThreadPart No. Thread Body Size DescriptionF1801⁄ 8\NPT1⁄ 8\Brass, with ValveMale ThreadPart No. Thread Body Size DescriptionF185 1⁄ 8\1⁄ 8\BrassThe F180 miniature ball-lock quick disconnect coupling/plug offers great performance in a very small size with high flow and minimal pressure drop. Designed for use with compressed air, gases, and liquids. It's perfect for breathable air, lab, medical, and pharmaceutical applications. It's a preferred choice anywhere high flow is required within a very tight space, such as boat lifts.F180 Sockets - 1⁄8\F180 Plugs - 1⁄8\Features:• Miniature Ball-Lock Quick Disconnect Coupling• Designed for use with Compressed Air, Gasses, and Liquids• Hansen 180 Series Interchange• Standard Brass Body, Optional Plating Available• F180 Series Utilizes a Tire Valve• Can Be Used in Laboratory, Medical, Pharmaceutical, Food, and Beverage• Offered with 1/8\/16\• Standard Buna-N, Flexible SealPerformance:• Temperature Range (std Buna-N seals): -40° to +225° F.• Max. Operating Pressure: 700 psig (48 bar)• Min. Burst Pressure: 2,800 psig (193 bar)• Flow Rate: 2.5 scfm (71 lpm)
