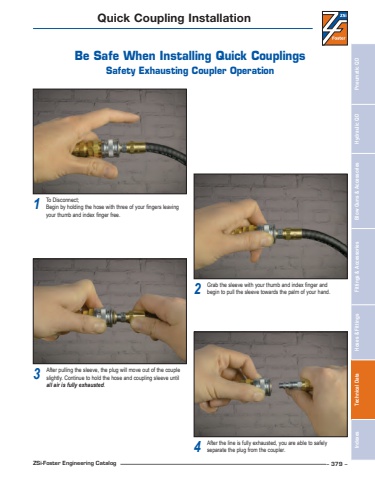

Indexes Technical Data Hoses & Fittings Fittings & Accessories Blow Guns & Accessories Hydraulic QD Pneumatic QDZSi-Foster Engineering Catalog – 379 –Be Safe When Installing Quick CouplingsSafety Exhausting Coupler OperationTo Disconnect;Begin by holding the hose with three of your fingers leaving your thumb and index finger free.After pulling the sleeve, the plug will move out of the couple slightly. Continue to hold the hose and coupling sleeve until all air is fully exhausted.Grab the sleeve with your thumb and index finger and begin to pull the sleeve towards the palm of your hand.After the line is fully exhausted, you are able to safely separate the plug from the coupler.1234Quick Coupling Installation
