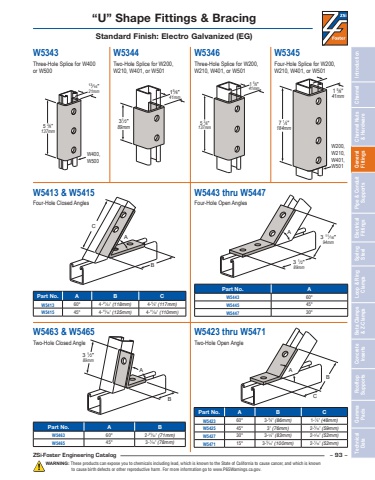

Technical Data Gamma Pads Rooftop Supports Concrete Inserts Beta Clamps & Z-Clamps Loop & Ring Clamps Spring Steel Electrical Fittings Pipe & Conduit Supports General Fittings Channel Nuts & Hardware Channel IntroductionZSi-Foster Engineering Catalog – 93 –WARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.“U” Shape Fittings & BracingStandard Finish: Electro Galvanized (EG)5 3⁄8\137mm13⁄16\ 21mmW400,W50015⁄8\41mm31⁄2\89mm 7 1⁄4\184mm1 5⁄8\41mmW200,W210,W401, W5015 3⁄8\137mm1 5⁄8\41mmW5343 Three-Hole Splice for W400 or W500W5344Two-Hole Splice for W200, W210, W401, or W501W5346Three-Hole Splice for W200, W210, W401, or W501W5345Four-Hole Splice for W200, W210, W401, or W501W5413 & W5415Four-Hole Closed AnglesW5443 thru W5447Four-Hole Open AnglesBAC3 11⁄16\94mm3 1⁄2\89mmAPart No. A B CW5413 60° 4-21⁄32\4-5⁄8\W5415 45° 4-15⁄16\4-11⁄32\Part No. AW5443 60°W5445 45°W5447 30°W5423 thru W5471Two-Hole Open AngleW5463 & W5465Two-Hole Closed AngleBCAB3 1⁄2\89mmAPart No. A B CW5423 60° 3-3⁄8\1-7⁄8\W5425 45° 3\2-5⁄16\W5427 30° 3-1⁄4\2-1⁄16\W5471 15° 3-5⁄16\2-1⁄16\Part No. A BW5463 60° 2-25⁄32\W5465 45° 3-1⁄16\
