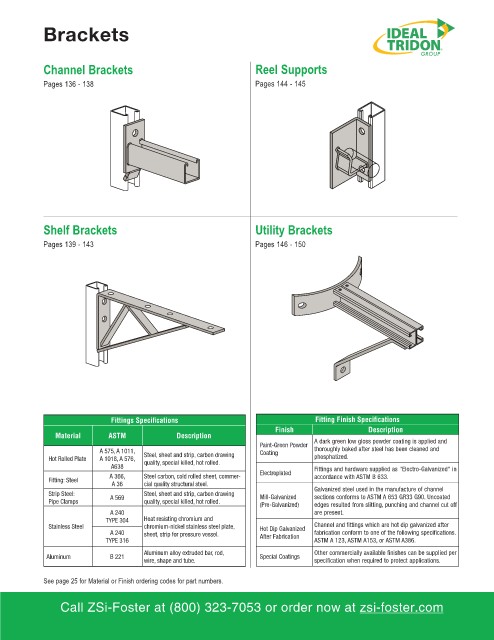

Page 135 - ZSi-Foster Product Catalog

Brackets

Channel Brackets Reel Supports
Pages 136 - 138 Pages 144 - 145

Shelf Brackets Utility Brackets

Pages 139 - 143 Pages 146 - 150

Fittings Specifications Fitting Finish Specifications
Finish Description
Material ASTM Description
Paint-Green Powder A dark green low gloss powder coating is applied and
A 575, A 1011, Coating thoroughly baked after steel has been cleaned and
Hot Rolled Plate A 1018, A 576, Steel, sheet and strip, carbon drawing phosphatized.
quality, special killed, hot rolled.
A638 Fittings and hardware supplied as "Electro-Galvanized" in
Electroplated
A 366, Steel carbon, cold rolled sheet, commer- accordance with ASTM B 633.
Fitting: Steel
A 36 cial quality structural steel.
Strip Steel: A 569 Steel, sheet and strip, carbon drawing Mill-Galvanized Galvanized steel used in the manufacture of channel
sections conforms to ASTM A 653 GR33 G90. Uncoated
Pipe Clamps quality, special killed, hot rolled.
(Pre-Galvanized) edges resulted from slitting, punching and channel cut off
A 240 are present.
TYPE 304 Heat resisting chromium and
Stainless Steel chromium-nickel stainless steel plate, Hot Dip Galvanized Channel and fittings which are hot dip galvanized after
A 240 sheet, strip for pressure vessel. fabrication conform to one of the following specifications.
TYPE 316 After Fabrication ASTM A 123, ASTM A153, or ASTM A386.
Aluminum alloy extruded bar, rod, Other commercially available finishes can be supplied per
Aluminum B 221 Special Coatings
wire, shape and tube. specification when required to protect applications.
See page 25 for Material or Finish ordering codes for part numbers.
