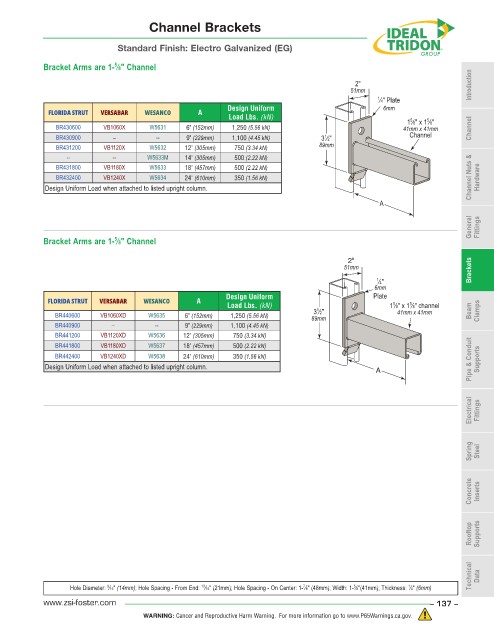

Page 137 - ZSi-Foster Product Catalog

Channel Brackets

Standard Finish: Electro Galvanized (EG)

5
Bracket Arms are 1- ⁄8" Channel
2" Introduction
51mm
1 ⁄4" Plate
Design Uniform 6mm
FLORIDA STRUT VERSABAR WESANCO A
Load Lbs. (kN) 1 ⁄8" x 1 ⁄8"
5
5
BR430600 VB1060X W5631 6" (152mm) 1,250 (5.56 kN) 41mm x 41mm Channel
1
BR430900 – -- 9" (229mm) 1,100 (4.45 kN) 3 ⁄2" Channel
BR431200 VB1120X W5632 12" (305mm) 750 (3.34 kN) 89mm
-- -- W5633M 14" (305mm) 500 (2.22 kN)
BR431800 VB1180X W5633 18" (457mm) 500 (2.22 kN)
BR432400 VB1240X W5634 24" (610mm) 350 (1.56 kN) Channel Nuts & Hardware
Design Uniform Load when attached to listed upright column.

A
General Fittings

Bracket Arms are 1- ⁄8" Channel
5

2"
51mm Brackets
1 ⁄4"
6mm
Design Uniform Plate
FLORIDA STRUT VERSABAR WESANCO A
Load Lbs. (kN) 1 1 ⁄8" x 1 ⁄8" channel
5
5
3 ⁄2"
BR440600 VB1060XD W5635 6" (152mm) 1,250 (5.56 kN) 89mm 41mm x 41mm Beam Clamps
BR440900 – -- 9" (229mm) 1,100 (4.45 kN)
BR441200 VB1120XD W5636 12" (305mm) 750 (3.34 kN)
BR441800 VB1180XD W5637 18" (457mm) 500 (2.22 kN)
BR442400 VB1240XD W5638 24" (610mm) 350 (1.56 kN) Pipe & Conduit Supports
Design Uniform Load when attached to listed upright column.
A

Electrical Fittings

Spring Steel

Concrete Inserts

Rooftop Supports

Technical Data

7
5
9
Hole Diameter: ⁄16" (14mm); Hole Spacing - From End: ⁄16" (21mm); Hole Spacing - On Center: 1- ⁄8" (48mm); Width: 1- ⁄8"(41mm); Thickness: ⁄4" (6mm)
13
1
