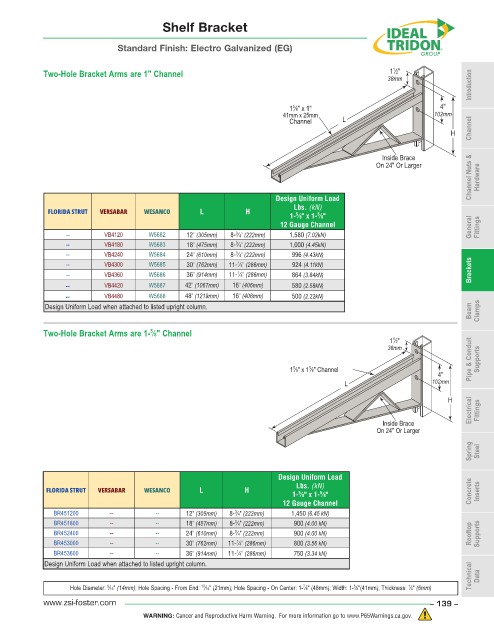

Page 139 - ZSi-Foster Product Catalog

Shelf Bracket

Standard Finish: Electro Galvanized (EG)

1
Two-Hole Bracket Arms are 1" Channel 1 ⁄2"
Introduction
38mm

1 ⁄8" x 1" 4"
5
41mm x 25mm 102mm
Channel L
H Channel

Channel Nuts & Hardware
Inside Brace
On 24" Or Larger

Design Uniform Load
Lbs. (kN)
FLORIDA STRUT VERSABAR WESANCO L H
5
5
1- ⁄8" x 1- ⁄8"
12 Gauge Channel General Fittings
3
-- VB4120 W5682 12" (305mm) 8- ⁄4" (222mm) 1,580 (7.02kN)
3
-- VB4180 W5683 18" (475mm) 8- ⁄4" (222mm) 1,000 (4.45kN)
-- VB4240 W5684 24" (610mm) 8- ⁄4" (222mm) 996 (4.43kN)
3
1
-- VB4300 W5685 30" (762mm) 11- ⁄4" (286mm) 924 (4.11kN)
1
-- VB4360 W5686 36" (914mm) 11- ⁄4" (286mm) 864 (3.84kN) Brackets
-- VB4420 W5687 42" (1067mm) 16" (406mm) 580 (2.58kN)
-- VB4480 W5688 48" (1219mm) 16" (406mm) 500 (2.22kN)
Beam Clamps
Design Uniform Load when attached to listed upright column.
5
Two-Hole Bracket Arms are 1- ⁄8" Channel
1 ⁄2"
1
38mm
1 ⁄8" x 1 ⁄8" Channel Pipe & Conduit Supports
5
5
4"
L 102mm
Electrical Fittings
H

Inside Brace
On 24" Or Larger
Spring Steel

Design Uniform Load
Lbs. (kN)
FLORIDA STRUT VERSABAR WESANCO L H Concrete
5
1- ⁄8" x 1- ⁄8" Inserts
5
12 Gauge Channel
BR451200 -- -- 12" (305mm) 8- ⁄4" (222mm) 1,450 (6.45 kN)
3
3
BR451800 -- -- 18" (457mm) 8- ⁄4" (222mm) 900 (4.00 kN)
3
BR452400 -- -- 24" (610mm) 8- ⁄4" (222mm) 900 (4.00 kN) Rooftop Supports
1
BR453000 -- -- 30" (762mm) 11- ⁄4" (286mm) 800 (3.56 kN)
BR453600 -- -- 36" (914mm) 11- ⁄4" (286mm) 750 (3.34 kN)
1
Design Uniform Load when attached to listed upright column.
Technical Data
13
Hole Diameter: ⁄16" (14mm); Hole Spacing - From End: ⁄16" (21mm); Hole Spacing - On Center: 1- ⁄8" (48mm); Width: 1- ⁄8"(41mm); Thickness: ⁄4" (6mm)
9
1
7
5
www.zsi-foster.com – 139 –
