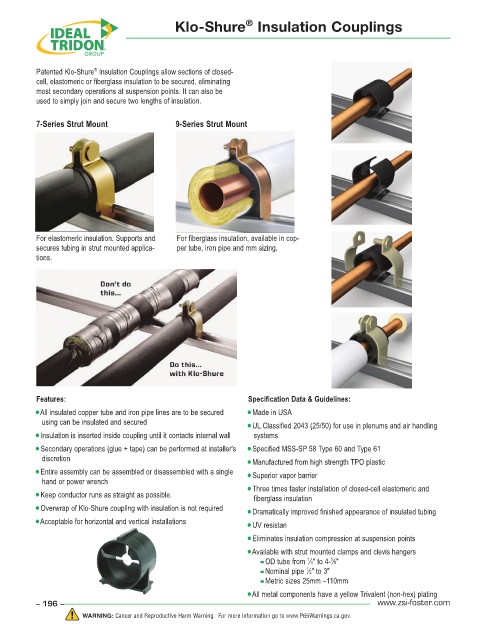

Klo-Shure  Insulation Couplings
                                                              ®




                        ®
          Patented Klo-Shure  Insulation Couplings allow sections of closed-
          cell, elastomeric or fiberglass insulation to be secured, eliminating
          most secondary operations at suspension points. It can also be
          used to simply join and secure two lengths of insulation.

          7-Series Strut Mount               9-Series Strut Mount
















          For elastomeric insulation. Supports and   For fiberglass insulation, available in cop-
          secures tubing in strut mounted applica-  per tube, iron pipe and mm sizing.
          tions.




















          Features:                                            Specification Data & Guidelines:
          • • All insulated copper tube and iron pipe lines are to be secured   • • Made in USA
           using can be insulated and secured                  • • UL Classified 2043 (25/50) for use in plenums and air handling

          • • Insulation is inserted inside coupling until it contacts internal wall  systems
          • • Secondary operations (glue + tape) can be performed at installer's   • • Specified MSS-SP 58 Type 60 and Type 61
           discretion                                          • • Manufactured from high strength TPO plastic
          • • Entire assembly can be assembled or disassembled with a single   • • Superior vapor barrier
           hand or power wrench
                                                               • • Three times faster installation of closed-cell elastomeric and
          • • Keep conductor runs as straight as possible.      fiberglass insulation
          • • Overwrap of Klo-Shure coupling with insulation is not required  • • Dramatically improved finished appearance of insulated tubing
          • • Acceptable for horizontal and vertical installations  • • UV resistan
                                                               • • Eliminates insulation compression at suspension points

                                                               • • Available with strut mounted clamps and clevis hangers
                                                                  -  - OD tube from  ⁄4" to 4- ⁄8"
                                                                             1
                                                                                   1
                                                                             1
                                                                  -  - Nominal pipe  ⁄2" to 3"
                                                                  -  - Metric sizes 25mm –110mm
                                                               • • All metal components have a yellow Trivalent (non-hex) plating
