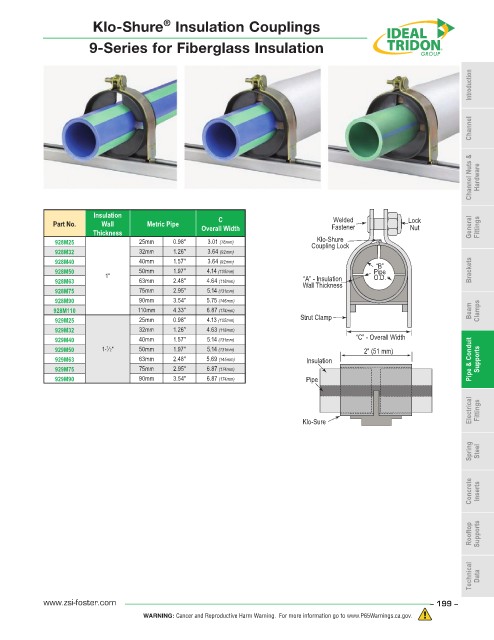

Klo-Shure Insulation Couplings
®
9-Series for Fiberglass Insulation

Introduction

Channel

Channel Nuts & Hardware

Insulation Welded
C
Part No. Wall Metric Pipe Overall Width Fastener Lock General
Nut
Thickness Fittings
Klo-Shure
928M25 25mm 0.98" 3.01 (76mm) Coupling Lock
928M32 32mm 1.26" 3.64 (92mm)
928M40 40mm 1.57" 3.64 (92mm) “B”
928M50 50mm 1.97" 4.14 (105mm) Pipe Brackets
1" “A” - Insulation O.D.
928M63 63mm 2.48" 4.64 (118mm) Wall Thickness
928M75 75mm 2.95" 5.14 (131mm)
928M90 90mm 3.54" 5.75 (146mm)
928M110 110mm 4.33" 6.87 (174mm) Beam Clamps
929M25 25mm 0.98" 4.13 (105mm) Strut Clamp
929M32 32mm 1.26" 4.63 (118mm)
929M40 40mm 1.57" 5.14 (131mm) “C” - Overall Width
1
929M50 1- ⁄2" 50mm 1.97" 5.14 (131mm) 2" (51 mm)
929M63 63mm 2.48" 5.69 (145mm) Insulation Pipe & Conduit Supports
929M75 75mm 2.95" 6.87 (174mm)
929M90 90mm 3.54" 6.87 (174mm) Pipe

Electrical Fittings

Klo-Sure

Spring Steel

Concrete Inserts

Rooftop Supports

Technical Data

www.zsi-foster.com – 199 –
