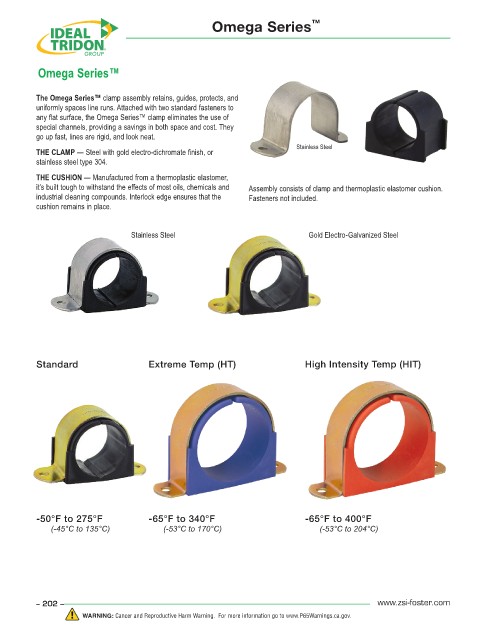

Page 202 - ZSi-Foster Product Catalog

Omega Series ™

Omega Series™

The Omega Series™ clamp assembly retains, guides, protects, and
uniformly spaces line runs. Attached with two standard fasteners to
any flat surface, the Omega Series™ clamp eliminates the use of
special channels, providing a savings in both space and cost. They
go up fast, lines are rigid, and look neat.
Stainless Steel
THE CLAMP — Steel with gold electro-dichromate finish, or
stainless steel type 304.

THE CUSHION — Manufactured from a thermoplastic elastomer,
it’s built tough to withstand the effects of most oils, chemicals and Assembly consists of clamp and thermoplastic elastomer cushion.
industrial cleaning compounds. Interlock edge ensures that the Fasteners not included.
cushion remains in place.

Stainless Steel Gold Electro-Galvanized Steel

Standard Extreme Temp (HT) High Intensity Temp (HIT)

-50°F to 275°F -65°F to 340°F -65°F to 400°F
(-45°C to 135°C) (-53°C to 170°C) (-53°C to 204°C)

– 202 – www.zsi-foster.com
