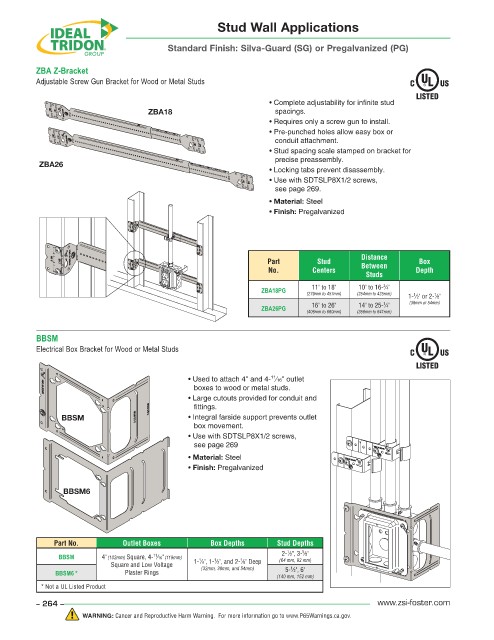

Page 264 - ZSi-Foster Product Catalog

Stud Wall Applications

Standard Finish: Silva-Guard (SG) or Pregalvanized (PG)

ZBA Z-Bracket
Adjustable Screw Gun Bracket for Wood or Metal Studs

• Complete adjustability for infinite stud
ZBA18 spacings.
• Requires only a screw gun to install.
• Pre-punched holes allow easy box or
conduit attachment.
• Stud spacing scale stamped on bracket for
precise preassembly.
ZBA26
• Locking tabs prevent disassembly.
• Use with SDTSLP8X1/2 screws,
see page 269.
• Material: Steel
• Finish: Pregalvanized

Distance
Part Stud Between Box
No. Centers Depth
Studs
3
11" to 18" 10" to 16- ⁄4"
ZBA18PG
(279mm to 457mm) (254mm to 425mm) 1- ⁄2" or 2- ⁄8"
1
1
14" to 25- ⁄4"
1
16" to 26"
ZBA26PG (406mm to 660mm) (356mm to 641mm) (38mm or 54mm)
BBSM
Electrical Box Bracket for Wood or Metal Studs

11
• Used to attach 4" and 4- ⁄16" outlet
boxes to wood or metal studs.
• Large cutouts provided for conduit and
fittings.
BBSM • Integral farside support prevents outlet
box movement.
• Use with SDTSLP8X1/2 screws,
see page 269
• Material: Steel
• Finish: Pregalvanized

BBSM6

Part No. Outlet Boxes Box Depths Stud Depths
5
2- ⁄2", 3- ⁄8"
1
11
BBSM 4" (102mm) Square, 4- ⁄16" (119mm) 1 1 1 (64 mm, 92 mm)
Square and Low Voltage 1- ⁄4", 1- ⁄2", and 2- ⁄8" Deep 1
(32mm, 38mm, and 54mm)
BBSM6 * Plaster Rings 5- ⁄2", 6"
(140 mm, 152 mm)
* Not a UL Listed Product
