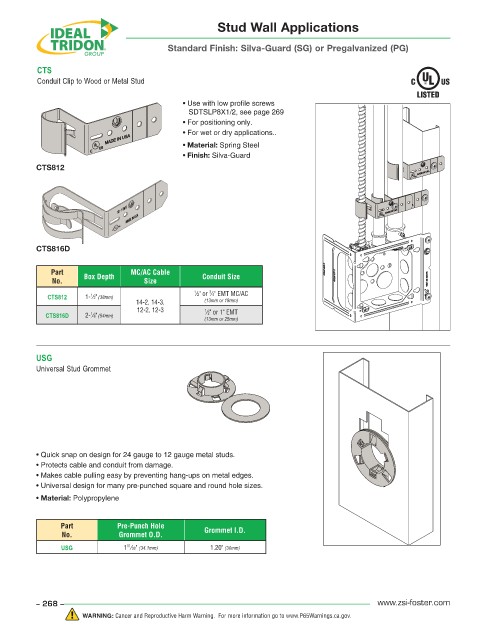

Page 268 - ZSi-Foster Product Catalog

Stud Wall Applications

Standard Finish: Silva-Guard (SG) or Pregalvanized (PG)

CTS
Conduit Clip to Wood or Metal Stud

• Use with low profile screws
SDTSLP8X1/2, see page 269
• For positioning only.
• For wet or dry applications..
• Material: Spring Steel
• Finish: Silva-Guard
CTS812

CTS816D

Part MC/AC Cable
No. Box Depth Size Conduit Size
1 ⁄2" or ⁄4" EMT MC/AC
3
1
CTS812 1- ⁄2" (38mm)
14-2, 14-3, (13mm or 19mm)
12-2, 12-3 1 ⁄2" or 1" EMT
1
CTS816D 2- ⁄8" (54mm)
(13mm or 25mm)
USG
Universal Stud Grommet

• Quick snap on design for 24 gauge to 12 gauge metal studs.
• Protects cable and conduit from damage.
• Makes cable pulling easy by preventing hang-ups on metal edges.
• Universal design for many pre-punched square and round hole sizes.
• Material: Polypropylene

Part Pre-Punch Hole
No. Grommet O.D. Grommet I.D.
11
USG 1 ⁄32" (34.1mm) 1.20" (30mm)

– 268 – www.zsi-foster.com
