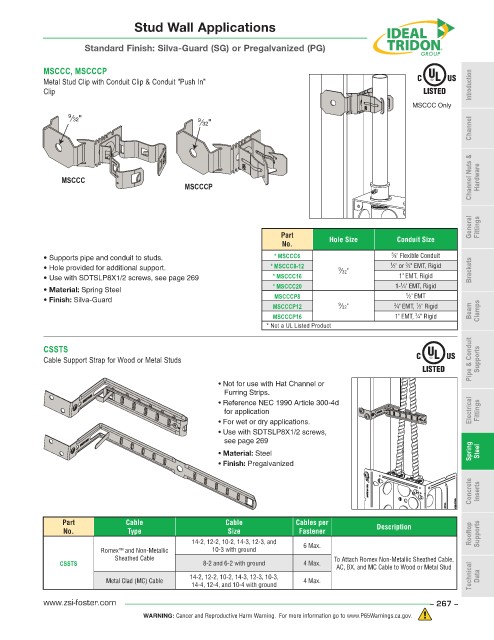

Page 267 - ZSi-Foster Product Catalog

Stud Wall Applications

Standard Finish: Silva-Guard (SG) or Pregalvanized (PG)

MSCCC, MSCCCP
Metal Stud Clip with Conduit Clip & Conduit "Push In" Introduction
Clip

MSCCC Only
9 ⁄32" 9 ⁄32"
Channel

Channel Nuts & Hardware

MSCCC
MSCCCP

General Fittings

Part
No. Hole Size Conduit Size
• Supports pipe and conduit to studs. * MSCCC6 3 ⁄8" Flexible Conduit
3
• Hole provided for additional support. * MSCCC8-12 9 ⁄32" 1 ⁄2" or ⁄4" EMT, Rigid Brackets
• Use with SDTSLP8X1/2 screws, see page 269 * MSCCC16 1" EMT, Rigid
1
• Material: Spring Steel * MSCCC20 1- ⁄4" EMT, Rigid
1
• Finish: Silva-Guard MSCCCP8 ⁄2" EMT
1
MSCCCP12 9 ⁄32" 3 ⁄4" EMT, ⁄2" Rigid Beam Clamps
3
MSCCCP16 1" EMT, ⁄4" Rigid
* Not a UL Listed Product
Pipe & Conduit
CSSTS
Cable Support Strap for Wood or Metal Studs Supports

• Not for use with Hat Channel or
Furring Strips.
• Reference NEC 1990 Article 300-4d
for application Electrical Fittings
• For wet or dry applications.
• Use with SDTSLP8X1/2 screws,
see page 269
• Material: Steel Spring Steel
• Finish: Pregalvanized

Concrete Inserts

Part Cable Cable Cables per Description
No. Type Size Fastener Rooftop Supports
14-2, 12-2, 10-2, 14-3, 12-3, and 6 Max.
Romex™ and Non-Metallic 10-3 with ground
Sheathed Cable To Attach Romex Non-Metallic Sheathed Cable,
CSSTS 8-2 and 6-2 with ground 4 Max.
AC, BX, and MC Cable to Wood or Metal Stud
14-2, 12-2, 10-2, 14-3, 12-3, 10-3, Technical Data
Metal Clad (MC) Cable 14-4, 12-4, and 10-4 with ground 4 Max.
www.zsi-foster.com – 267 –
