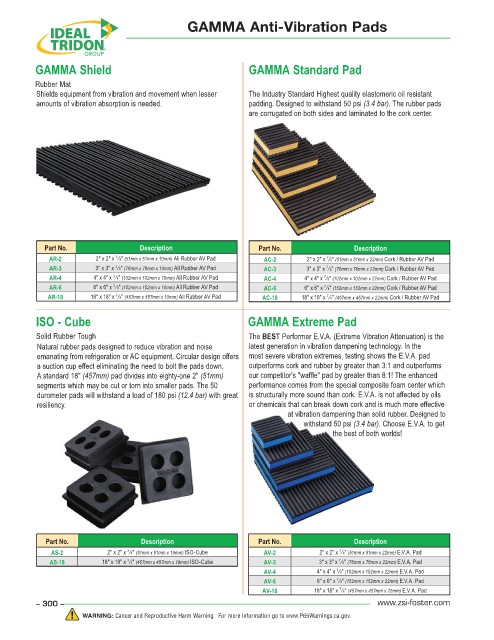

Page 300 - ZSi-Foster Product Catalog

GAMMA Anti-Vibration Pads

GAMMA Shield GAMMA Standard Pad
Rubber Mat
Shields equipment from vibration and movement when lesser The Industry Standard Highest quality elastomeric oil resistant
amounts of vibration absorption is needed. padding. Designed to withstand 50 psi (3.4 bar). The rubber pads
are corrugated on both sides and laminated to the cork center.

Part No. Description Part No. Description
3
7
AR-2 2" x 2" x ⁄8" (51mm x 51mm x 10mm) All Rubber AV Pad AC-2 2" x 2" x ⁄8" (51mm x 51mm x 22mm) Cork / Rubber AV Pad
3
AR-3 3" x 3" x ⁄8" (76mm x 76mm x 10mm) All Rubber AV Pad AC-3 3" x 3" x ⁄8" (76mm x 76mm x 22mm) Cork / Rubber AV Pad
7
3
AR-4 4" x 4" x ⁄8" (102mm x 102mm x 10mm) All Rubber AV Pad AC-4 4" x 4" x ⁄8" (102mm x 102mm x 22mm) Cork / Rubber AV Pad
7
AR-6 6" x 6" x ⁄8" (152mm x 152mm x 10mm) All Rubber AV Pad AC-6 6" x 6" x ⁄8" (152mm x 152mm x 22mm) Cork / Rubber AV Pad
3
7
3
7
AR-18 18" x 18" x ⁄8" (457mm x 457mm x 10mm) All Rubber AV Pad AC-18 18" x 18" x ⁄8" (457mm x 457mm x 22mm) Cork / Rubber AV Pad
ISO - Cube GAMMA Extreme Pad
Solid Rubber Tough The BEST Performer E.V.A. (Extreme Vibration Attenuation) is the
Natural rubber pads designed to reduce vibration and noise latest generation in vibration dampening technology. In the
emanating from refrigeration or AC equipment. Circular design offers most severe vibration extremes, testing shows the E.V.A. pad
a suction cup effect eliminating the need to bolt the pads down. outperforms cork and rubber by greater than 3:1 and outperforms
A standard 18" (457mm) pad divides into eighty-one 2" (51mm) our competitor's "waffle" pad by greater than 8:1! The enhanced
segments which may be cut or torn into smaller pads. The 50 performance comes from the special composite foam center which
durometer pads will withstand a load of 180 psi (12.4 bar) with great is structurally more sound than cork. E.V.A. is not affected by oils
resiliency. or chemicals that can break down cork and is much more effective
at vibration dampening than solid rubber. Designed to
withstand 50 psi (3.4 bar). Choose E.V.A. to get
the best of both worlds!

Part No. Description Part No. Description
7
3
AS-2 2" x 2" x ⁄4" (51mm x 51mm x 19mm) ISO-Cube AV-2 2" x 2" x ⁄8" (51mm x 51mm x 22mm) E.V.A. Pad
7
3
AS-18 18" x 18" x ⁄4" (457mm x 457mm x 19mm) ISO-Cube AV-3 3" x 3" x ⁄8" (76mm x 76mm x 22mm) E.V.A. Pad
7
AV-4 4" x 4" x ⁄8" (102mm x 102mm x 22mm) E.V.A. Pad
7
AV-6 6" x 6" x ⁄8" (152mm x 152mm x 22mm) E.V.A. Pad
7
AV-18 18" x 18" x ⁄8" (457mm x 457mm x 22mm) E.V.A. Pad
