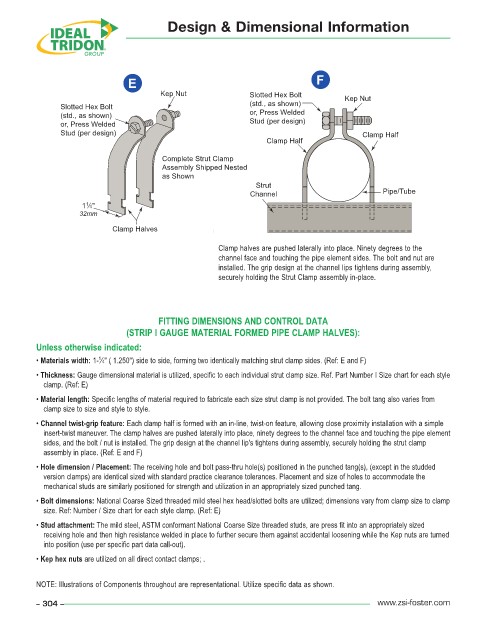

Design & Dimensional Information

E F
Kep Nut Slotted Hex Bolt Kep Nut
Slotted Hex Bolt (std., as shown)
(std., as shown) or, Press Welded
or, Press Welded Stud (per design)
Stud (per design) Clamp Half
Clamp Half

Complete Strut Clamp
Assembly Shipped Nested
as Shown
Strut
Channel Pipe/Tube
1 ⁄4"
1
32mm
Clamp Halves

Clamp halves are pushed laterally into place. Ninety degrees to the
channel face and touching the pipe element sides. The bolt and nut are
installed. The grip design at the channel Iips tightens during assembly,
securely holding the Strut Clamp assembly in-place.

FITTING DIMENSIONS AND CONTROL DATA
(STRIP I GAUGE MATERIAL FORMED PIPE CLAMP HALVES):
Unless otherwise indicated:
1
• Materials width: 1- ⁄4" ( 1.250") side to side, forming two identically matching strut clamp sides. (Ref: E and F)
• Thickness: Gauge dimensional material is utilized, specific to each individual strut clamp size. Ref. Part Number I Size chart for each style
clamp. (Ref: E)
• Material length: Specific lengths of material required to fabricate each size strut clamp is not provided. The bolt tang also varies from
clamp size to size and style to style.

• Channel twist-grip feature: Each clamp half is formed with an in-line, twist-on feature, allowing close proximity installation with a simple
insert-twist maneuver. The clamp halves are pushed laterally into place, ninety degrees to the channel face and touching the pipe element
sides, and the bolt / nut is installed. The grip design at the channel Iip's tightens during assembly, securely holding the strut clamp
assembly in place. (Ref: E and F)

• Hole dimension / Placement: The receiving hole and bolt pass-thru hole(s) positioned in the punched tang(s), (except in the studded
version clamps) are identical sized with standard practice clearance tolerances. Placement and size of holes to accommodate the
mechanical studs are similarly positioned for strength and utilization in an appropriately sized punched tang.

• Bolt dimensions: National Coarse Sized threaded mild steel hex head/slotted bolts are utilized; dimensions vary from clamp size to clamp
size. Ref: Number / Size chart for each style clamp. (Ref: E)
• Stud attachment: The mild steel, ASTM conformant National Coarse Size threaded studs, are press fit into an appropriately sized
receiving hole and then high resistance welded in place to further secure them against accidental loosening while the Kep nuts are turned
into position (use per specific part data call-out).
• Kep hex nuts are utilized on all direct contact clamps; .

NOTE: Illustrations of Components throughout are representational. Utilize specific data as shown.
